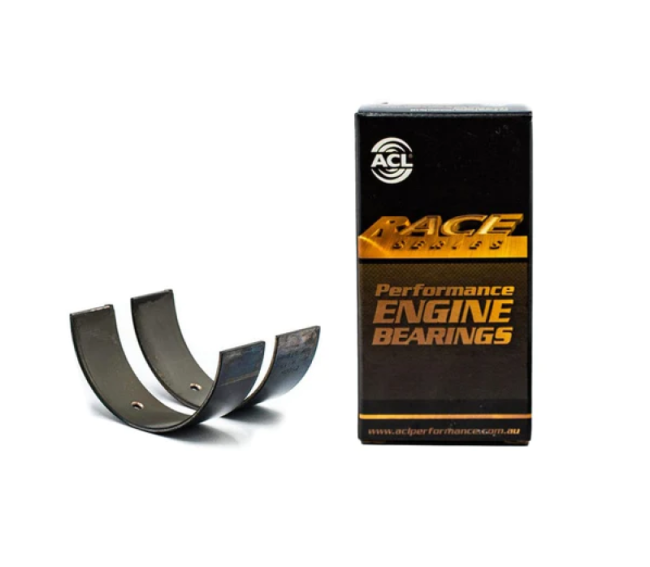

ACL Ford 221/255/260/289/302 Windsor/Windsor 5.0L Standard Size Main Bearing Set

• High performance Trimetal engine bearings
• Designed to withstand higher RPM conditions
• High strength overlay plate with reduced thickness for improved fatigue properties

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Fits
Ford    221ci V8    Ford 221ci (3.6L) V8 OHV 2v
Ford    255ci V8    Ford 255ci (4.2L) V8 OHV 2v
Ford    260ci V8    Ford 260ci (4.3L) V8 OHV 2v
Ford    289ci V8    Ford 289ci (4.7L) V8 OHV 2v
Ford    Windsor    Ford 302ci (5.0L) Windsor V8 OHV 2v Carb.
Ford    5.0 - H,X,Z    Ford 302ci (5.0L) Windsor V8 OHV 2v EFI
