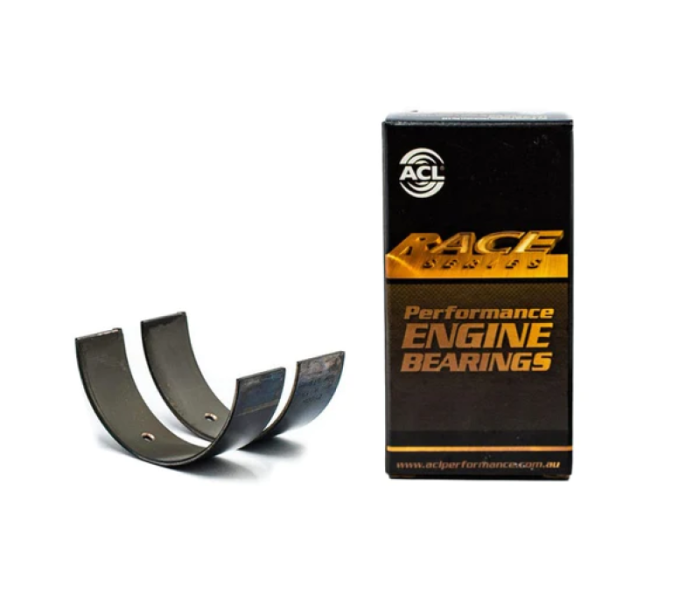

ACL Toyota 4AGE/4AGZE (1.6L) 0.25 Oversized High Performance Main Bearing Set

• High performance Trimetal engine bearings
• Designed to withstand higher RPM conditions
• High strength overlay plate with reduced thickness for improved fatigue properties

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Fits
Toyota    2A    Toyota 2A 1298cc Inline4 SOHC 2v
Toyota    2A-LC    Toyota 2A-LC 1298cc Inline4 SOHC 2v
Toyota    3A    Toyota 3A 1452cc Inline4 SOHC 2v
Toyota    3A-C    Toyota 3A-C 1452cc Inline4 SOHC 2v
Toyota    3A-U    Toyota 3A-U 1452cc Inline4 SOHC 2v
Toyota    4A-C    Toyota 4A-C 1587cc Inline4 SOHC 2v
Toyota    4A-F    Toyota 4A-F 1587cc Inline4 DOHC 4v
Toyota    4A-FE    Toyota 4A-FE 1587cc Inline4 DOHC 4v
Toyota    4A-GE (20v)    Toyota 4A-GE (20v) 1587cc Inline4 DOHC 5v
Toyota    4A-GE    Toyota 4A-GE 1587cc Inline4 DOHC 4v
Toyota    4A-GEC    Toyota 4A-GEC 1587cc Inline4 DOHC 4v
Toyota    4A-GELC    Toyota 4A-GELC 1587cc Inline4 DOHC 4v
Toyota    4A-GZE    Toyota 4A-GZE 1587cc Inline4 DOHC 4v Supercharged
Toyota    4A-LC    Toyota 4A-LC 1587cc Inline4 SOHC 2v
Toyota    5A-F    Toyota 5A-F 1498cc Inline4 DOHC 4v
Toyota    5A-FE    Toyota 5A-FE 1498cc Inline4 DOHC 4v
Toyota    6A-FC    Toyota 6A-FC 1397cc Inline4 DOHC 4v
Toyota    7A-FE    Toyota 7A-FE 1762cc Inline4 DOHC 4v
