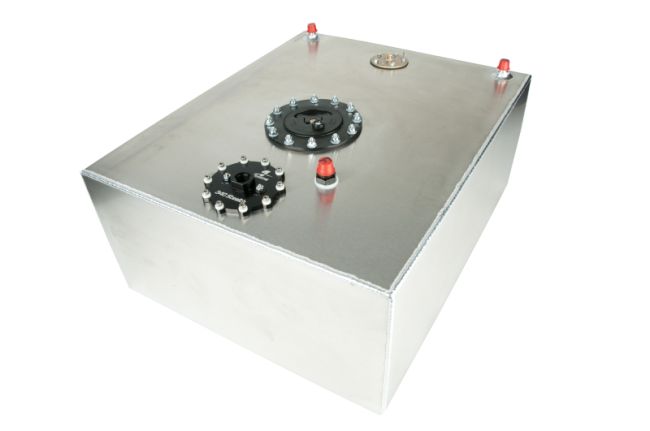

Aeromotive 20 Gallon Fuel Cell with Integrated 340-lph In-Tank Fuel Pump Module & Filter

P/N 18659 (6 Gallon), 18644 (15 Gallon), 18665 (20 Gallon) with Built-In 340 LPH In-Tank Stealth Fuel Cell

340 Stealth Performance In a Baffled Fuel Cell

Street/Strip Fuel Cell with 340 Stealth Pump, aircraft filler cap, AN-08 ORB outlet port, AN-08 male flare baffled return and dual, roll-over protected AN-08 vents.

Stealth 340 Fuel Pump (internal) - P/N 11540

6, 15 or 20 Gallon Capacity

Baffled design keeps fuel at the pump inlet

AN-08 ORB Outlet Port

AN-08 Male Return Line Provision

(2) AN-08 Male Vents with Rollover Valves

Standard 12-Bolt Flush Mount Lid Assembly

Integrated 0-90-ohm fuel level sending unit

Natural Aluminum Finish

Supports up to:

EFI - 700hp Forced Induction

EFI - 850hp Naturally Aspirated

Carbureted - 850hp Forced Induction

Carbureted - 1000hp Naturally Aspirated

Dimensions:

6 Gallon: 12" L x 12" W x 10" H

15 Gallon: 18" L x 20" W x 10" H

20 Gallon: 24" L x 20" W x 10"

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Series Stealth Fuel Cell

Capacity 6 Gallons

Baffled Yes

Material Aluminum

Universal Or Specific Fit Universal

Color Natural

Filler Neck Attached Yes

Width 12 Inches

Fuel Type Gas

Grade Type Performance

Height 10 Inches

Length 12 Inches

Mounting Hardware Included No

Mounting Straps Included No

Sending Unit Included No

Fuel Pump Included Yes

Maximum Flow Rating 340LPH

Maximum Pressure 105 PSI

Pump Design Turbine Impeller

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Outlet Type Female

Outlet Outside Diameter ORB-06

Return Fitting Size ORB-06

Maximum Current Draw 13A @ 40PSI

Voltage 12-16V

Negative Ground Yes

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud
