Aeromotive 340 Series Stealth In-Tank E85 Fuel Pump - Offset Inlet

P/N 11541: 340 Fuel Pump, Offset Inlet

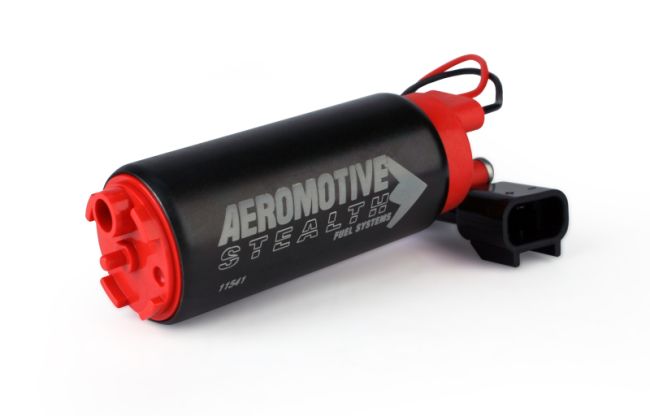

**Offset Inlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.

Fits most vehicles where popular aftermarket pumps are applicable.

Offset Inlet, In-line with outlet

E85 Compatible

OEM 39mm Body

Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)

Designed for in-tank use only

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Can be used with carbureted or EFI applications

Turbine pump mechanism increases durability and can be used in pulse modulated applications.

P/N 11541 Includes:

340 Stealth Pump

Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)

Supersedes P/N 11141

Series Stealth 340

Maximum Flow Rating 340

Maximum Pressure 65

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Internal Or External Internal

Pump Design Turbine Impeller

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Carburation & Fuel Injection

Outlet Type Barb

Outlet Outside Diameter 0.35

Maximum Current Draw 15.5

Voltage 12

Negative Ground Yes

Wire Quantity 2

Wiring Harness Included Yes

Terminal Gender 280 Metri_Pack

Terminal Quantity 2

Terminal Type Lead Wire

Strainer Included Yes

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included No

Mounting Hardware Included No

Seal And Lock Ring Included No

Gasket Or Seal Included No

Grade Type Performance
