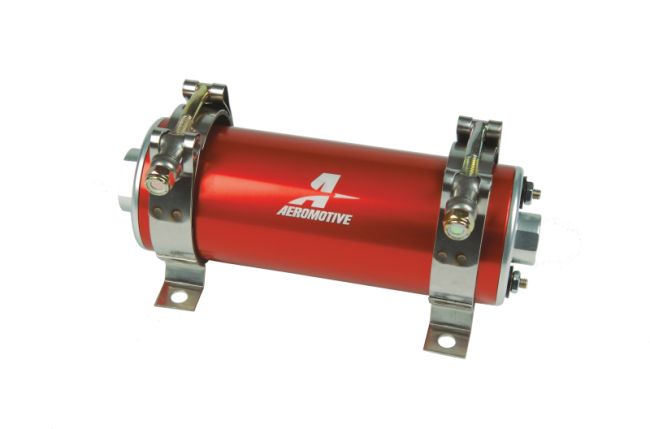

Aeromotive 700 HP EFI Fuel Pump - Red

A750 Fuel Pump

Compact, quiet and durable, these billet, in-line pumps are ideal for low to medium HP applications. Perfect for street rods and muscle cars, fuel-injected or carbureted. Available in three finish options.

Fuel Injected Engines:

up to 800 HP - naturally-aspirated

up to 600 HP - forced air induction

Carbureted Engines:

up to 1,000 HP - naturally-aspirated

up to 800 HP - forced air induction

ORB-8 inlet ports and ORB-6 outlet ports

Compact size facilitates easy mounting

For EFI use regulator P/N 13138, 13109 or P/N 13303.

For Carbureted use regulator P/N 13204 or P/N 13304.

Fully submersible for custom, in-tank placement

Available in Red, Black, and Platinum finish options

Series A750

Maximum Flow Rating 750

Maximum Pressure 90

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Internal Or External External Or Internal

Pump Design Rotary Vane

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Carburation & Fuel Injection

Inlet Type Female Thread

Inlet Outside Diameter ORB-10

Outlet Type Female Thread

Outlet Outside Diameter ORB-6

Maximum Current Draw 10 @ 45 psi

Voltage 12

Negative Ground Yes

Wire Quantity 0

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 2

Terminal Type Threaded Stud

Strainer Included No

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included No

Seal And Lock Ring Included No

Gasket Or Seal Included No

Grade Type Performance
