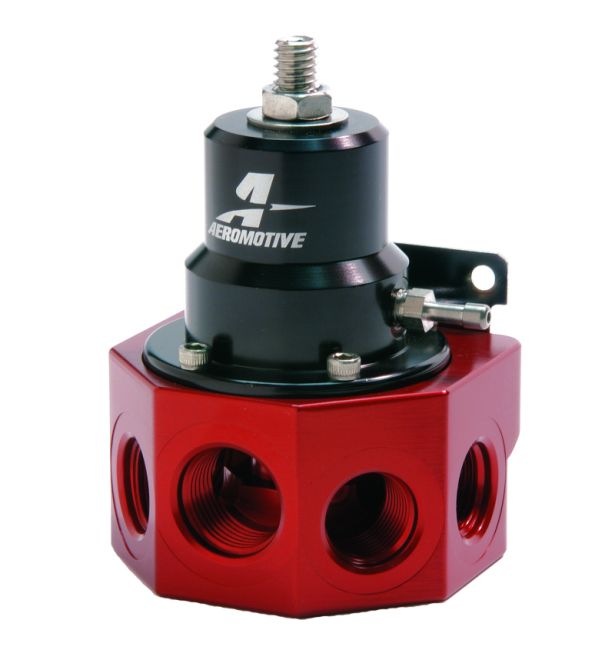

Aeromotive A2000 Carbureted Bypass Regulator - 4-Port

P/N 13202: A2000 return style Regulator

Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow-through applications. The A2000 return style Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump.

Adjustable from 2-20 PSI.

return style design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line)

Fuel pressure rises on a 1:1 ratio when referencing boost.

ORB-10 inlet and return ports.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 13202 provides (4) ORB-08 outlet ports.Note: High pressure, boost reference applications require high volume, high pressure fuel pumps. EFI capable, electric or mechanical pumps like the Aeromotive Pro-Series (P/N 11102), Eliminator (P/N 11104), or Belt Drive Fuel Pump (P/N 11105) are strongly recommended.

Pressure Range 2-20 PSI

Adjustable Yes

Minimum Pressure 2 PSI

Maximum Pressure 20 PSI

Mounting Bracket Included Yes

Port Quantity 4

Inlet Port Diameter ORB-10

Inlet Gender Female

Gauge Included No

Color Black/Red

Grade Type Performance
