Aeromotive Adjustable Fuel Pressure Regulator 30-120PSI .313 Valve -3x -8 / 1x -10 Inlet -10 Return

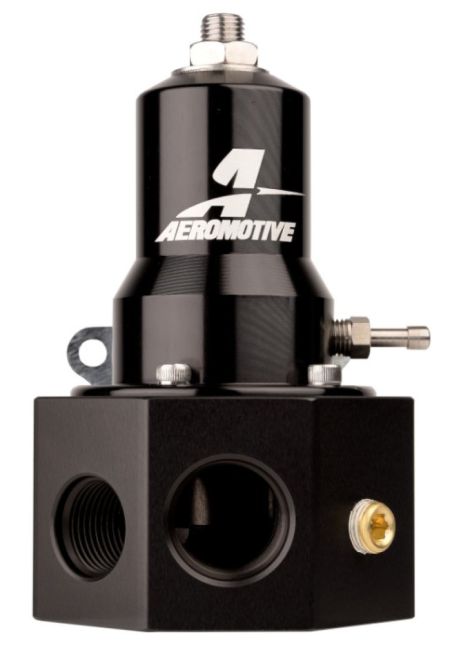

P/N 13145: Pro-Series EFI Regulator

Only Your favorite Pro-Series Regulator but without the port fittings

The tuner's choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power.

Base adjustment range 30-75 PSI with the installed spring.

Base adjustment range 75-125 PSI with the optional spring.

Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring.

Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring.

Auxiliary ports available for nitrous applications, pressure gauges and transducers.

References Vacuum/Boost on a 1:1 ratio.

Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)

Dedicated 1/8" NPT gauge/pressure port.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Virtually indestructible black hard-coat anodized finish.

Pressure Range 30-125 PSI

Adjustable Yes

Minimum Pressure 30 PSI

Maximum Pressure 125 PSI

Mounting Bracket Included Yes

Port Quantity 4

Inlet Port Diameter ORB-10

Inlet Gender Female

Gauge Included No

Color Black

Grade Type Performance
