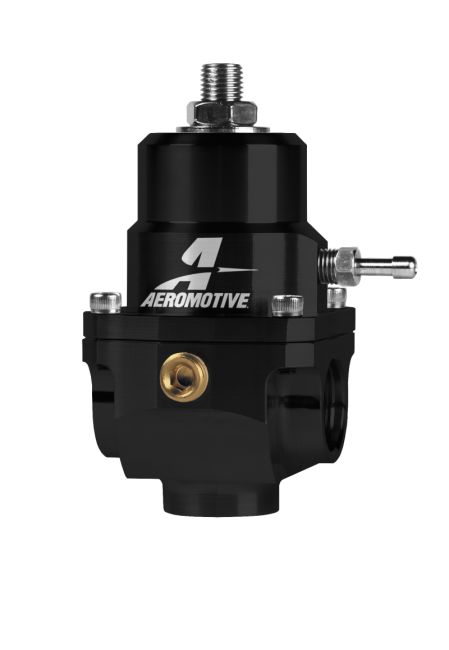

Aeromotive Adjustable Regulator - 35-75PSI - .313 Valve - (2) -08 Inlets/-08 Return

P/N 13305 X1 EFI Pro Return Style Regulator

EFI return style Regulator for Return Style Systems

Base fuel pressure adjustable from 35-75 PSI.

Vacuum/Boost reference capability.

1:1 rising rate for forced induction engines.

Gasoline, ethanol, alcohol and diesel compatible.

2 - ORB -08 inlet/outlet ports on the sides.

1 - ORB-08 return port on the bottom port.

1 - 1/8" NPT Gauge Port with plug.

1/16" NPT Boost Port with 5/32" hose barb.

Compatible with X1 EFI Conversion kit.

Compatible with X1 Carb Conversion kit.

0.313" return style with matching spring and poppet.

Handles up to 250 GPH with AN-08 return line.

Mounting bracket included (not shown).

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

X1 Regulator Service/Conversion Kits:

Include Seat, diaphragm/poppet assembly and spring

P/N 13014 150 GPH 0.313" Carb Conversion Kit

P/N 13013 150 GPH 0.188" EFI Conversion Kit

P/N 13015 250 GPH 0.313" EFI Service Kit

Pressure Range 35-75 PSI

Adjustable Yes

Minimum Pressure 35 PSI

Maximum Pressure 75 PSI

Mounting Bracket Included Yes

Port Quantity 2

Inlet Port Diameter ORB-08

Inlet Gender Female

Gauge Included No

Color Black

Grade Type Performance
