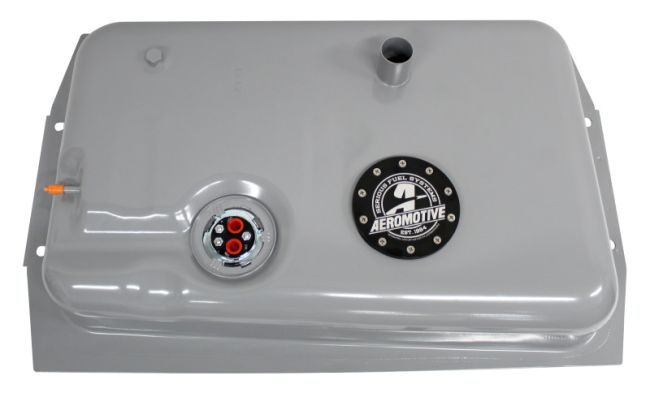

Aeromotive Chevrolet C10 (67-72) Gen II Stealth Fuel Tank with 200-lph Fuel Pump

P/N 18110: '67-'72 C10

With Stealth 200 pump and 0-90 ohm sending unit

P/N 18410: '67-'72 C10

With Stealth 340 pump and 0-90 ohm sending unit

P/N 18810: '67-'72 C10

With Stealth 450 pump and 0-90 ohm sending unit

Rear Mount Fuel Tank (Behind Rear Axle) Replaces OEM In-Cab Fuel Tank

Available in 3 different pump options – 200 LPH, 340 LPH, 450 LPH

Painted steel tank comes fully assembled

Easy installation process requires drilling only – no frame rail cutting

Includes comprehensive installation kit – bed fuel filler cap assembly, frame rail/bed floor drill guides, and hardware

17 gallon fuel tank capacity

Includes Aeromotive Patented Foam and Basket Assembly/Gen II Tank Technology to control fuel slosh and pump flooded

0-90 Ohm sending unit installed

-06 ORB outlet and return ports

P/N 18110 - 200lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines (gasoline):

Up to 600 HP – naturally aspirated.

Up to 450 HP – forced air induction.

Carbureted Engines (gasoline):

Up to 750 HP – naturally aspirated.

Up to 600 HP – forced air induction.

P/N 18410 - 340lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines

Gasoline: up to 850 HP – naturally aspirated.

Gasoline: up to 700 HP – forced air induction.

E85: up to 595 HP – naturally aspirated.

E85: up to 490 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1000 HP – naturally aspirated.

Gasoline: up to 850 HP – forced air induction.

E85: up to 700 HP – naturally aspirated.

E85: up to 595 HP – forced air induction.

P/N 18810 - 450lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines:

Gasoline: up to 1100 HP – naturally aspirated.

Gasoline: up to 800 HP – forced air induction.

E85: up to 750 HP – naturally aspirated.

E85: up to 550 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1000 HP – naturally aspirated.

Gasoline: up to 850 HP – forced air induction.

E85: up to 900 HP – naturally aspirated.

E85: up to 700 HP – forced air induction.

Series Gen II Stealth

Capacity 17 Gallons

Baffled Yes

Material Steel

Universal Or Specific Fit Specific

Color Silver

Filler Neck Attached Yes

Width OEM Inches

Fuel Type Gas

Grade Type Performance

Height OEM Inches

Length OEM Inches

Mounting Hardware Included No

Mounting Straps Included No

Sender Ohm Range 0-90

Sending Unit Included Yes

Fuel Pump Included Yes

Maximum Flow Rating 450LPH

Maximum Pressure 120 PSI

Pump Design Turbine Impeller

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Outlet Type Female

Outlet Outside Diameter ORB-06

Return Fitting Size ORB-06

Maximum Current Draw 15.3A @ 40PSI

Voltage 12-16V

Negative Ground Yes

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud
