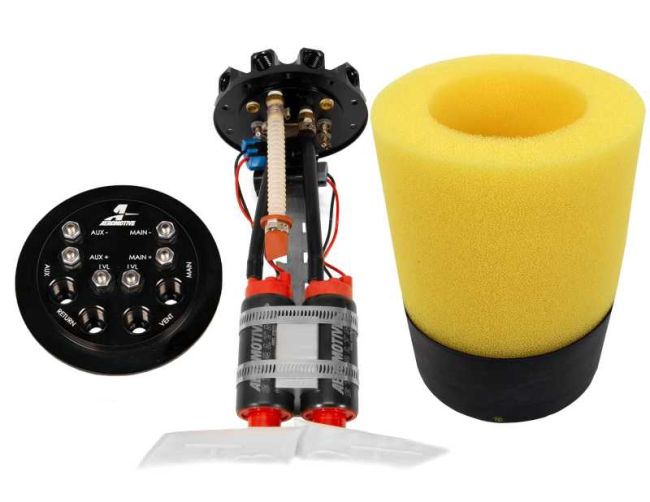

Aeromotive Chevrolet Camaro 3.8L & 5.7L (99-02) Phantom Series Dual 340lph Direct Drop-In Fuel Pump

This system is designed to work in Chevy Camaros equipped with the OEM plastic fuel tanks only; some of the 1999 models may still have a steel tank, which will not fit this Phantom series. The 1999-2002 models with a plastic tank use a smaller factory opening so be sure to ensure your tank before ordering.

The smaller opening in the 1999-2002 tanks does limit the pump configurations which will fit.  These tanks will accommodate several pump options including; a single 340, a dual 340, and a single 450 pump. Any other combination of more/larger pumps will not physically fit through the factory tank opening.

P/N 19101 - Single 340lph pump

P/N 19102 - Dual 340lph pumps

P/N 19103 - Single 450lph pump

All configurations come with fuel level sending unit bracket.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Series Stealth 340

Maximum Flow Rating 680

Maximum Pressure 40

Fuel Type Gas/E85

Universal Or Specific Fit Specific

Internal Or External Internal

Pump Design Turbine Impeller

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Fuel Injection

Outlet Type Male

Outlet Outside Diameter AN-06

Maximum Current Draw 15.5

Voltage 12

Negative Ground Yes

Wire Quantity 0

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud

Strainer Included Yes

Fuel Sending Unit Included Yes

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included Yes

Seal And Lock Ring Included No

Gasket Or Seal Included Yes

Grade Type Performance
