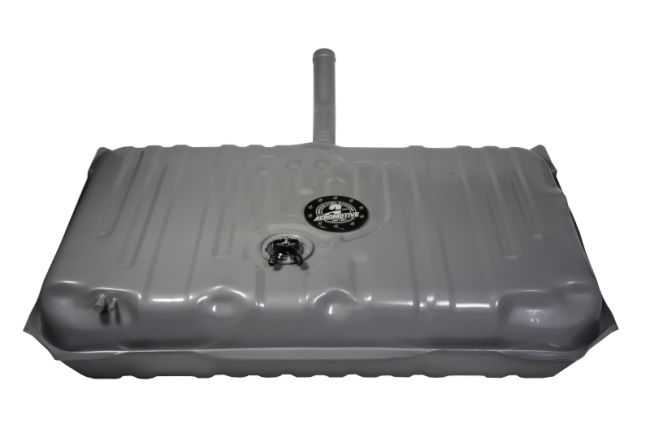

Aeromotive Chevrolet Chevelle & Malibu (70-73) & Monte Carlo (70) Gen II Stealth Fuel Tank with 200-lph Fuel Pump

P/N 18102: 70-72 Chevelle & Malibu, '70 Monte Carlo

With Stealth 200 pump and 0-90 ohm sending unit

Perfect for EFI and carbureted engines

OEM appearance and 17-gallon capacity

High flow, quiet 200 or 340 Stealth fuel pump

0-90 Ohm fuel level sending unit included

Billet hat with AN-06 outlet and return ports

Utilizes OEM fuel outlet location and seal

Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control

Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install

Utilizes stock mounting straps, filler cap and vent

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 18102 - 200lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines (gasoline):

Up to 600 HP – naturally aspirated.

Up to 450 HP – forced air induction.

Carbureted Engines (gasoline):

Up to 750 HP – naturally aspirated.

Up to 600 HP – forced air induction.

P/N 18402 - 340lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines:

Gasoline: up to 850 HP – naturally aspirated.

Gasoline: up to 700 HP – forced air induction.

E85: up to 595 HP – naturally aspirated.

E85: up to 490 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1000 HP – naturally aspirated.

Gasoline: up to 850 HP – forced air induction.

E85: up to 700 HP – naturally aspirated.

E85: up to 595 HP – forced air induction.

Series Gen II Stealth

Capacity 17 Gallons

Baffled Yes

Material Steel

Universal Or Specific Fit Specific

Color Silver

Filler Neck Attached Yes

Width 27 Inches

Fuel Type Gas

Grade Type Performance

Height 8 Inches

Length 41 Inches

Mounting Hardware Included No

Mounting Straps Included No

Sender Ohm Range 0-90

Sending Unit Included Yes

Fuel Pump Included Yes

Maximum Flow Rating 340LPH

Maximum Pressure 105 PSI

Pump Design Turbine Impeller

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Outlet Type Female

Outlet Outside Diameter ORB-06

Return Fitting Size ORB-06

Maximum Current Draw 13A @ 40PSI

Voltage 12-16V

Negative Ground Yes

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud
