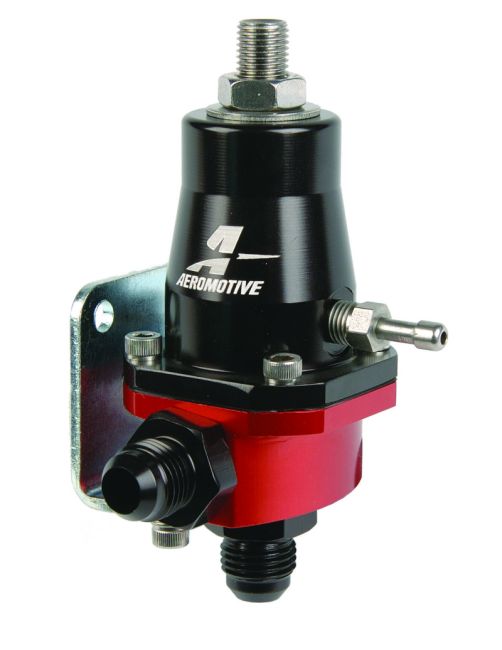

Aeromotive Compact Billet Adjustable EFI Regulator - (1) AN-6 Male Inlet and Return

Big performance in a small package. The Compact EFI Regulator is designed for applications producing up to 1,000 HP where space is at a premium. Ideal for EFI fuel delivery systems that are limited to one regulator inlet port.

Adjustable from 30-70 PSI.

Equipped with removable AN-06 male fittings for inlet and outlet ports, eliminates the need to buy additional fittings and O-rings.

Dedicated, 1/8" NPT gauge port located opposite the side inlet.

Fuel pressure rises on a 1:1 ratio when referencing boost.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Pressure Range 30-70 PSI

Adjustable Yes

Minimum Pressure 30 PSI

Maximum Pressure 70 PSI

Mounting Bracket Included Yes

Port Quantity 2

Inlet Port Diameter AN-06

Inlet Gender Male

Gauge Included No

Color Black/Red

Grade Type Performance
