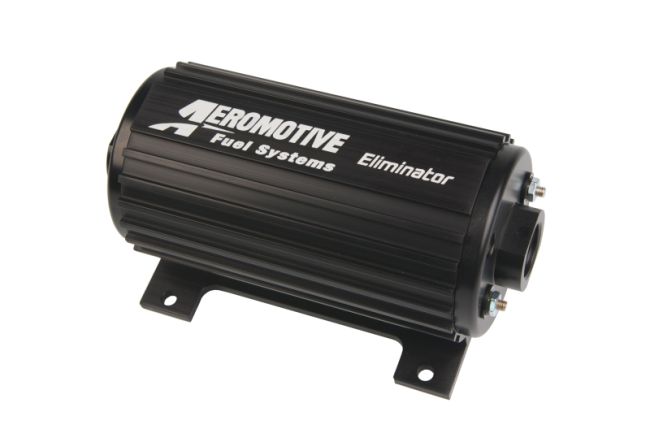

Aeromotive Eliminator-Series Fuel Pump (EFI or Carb Applications)

P/N 11104: Eliminator Fuel Pump

This continuous duty 'street warrior' supports big horsepower and maintains the drivability necessary for a true high performance street car. Designed for high horsepower street/strip applications, EFI or Carbureted, it features our 'dual chamber' pumping mechanism.

Fuel Injected Engines:

up to 1900 HP - naturally aspirated

up to 1400 HP - forced air induction

Carbureted Engines:

up to 2300 HP - naturally aspirated

up to 1700 HP - forced air induction

Fuel Injected Engines: E85

up to 1330 FWHP – naturally aspirated

up to 980 FWHP – forced air induction

Carbureted Engines: E85

up to 1610 FWHP – naturally aspirated

up to 1190 FWHP – forced air induction

ORB-12 inlet port and ORB-10 outlet port.

For EFI applications use regulator P/N 13110 or 13134, carbureted P/N 13212 13202.

Fully submersible for custom, in-tank placement.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

25% more flow at pressure than our A1000 Fuel Pump.

Perfect for 'blow-through' carbureted engines up to 1700 HP.

Billet Speed Pump Controller (P/N 16306) recommended for EFI street applications.

Series Eliminator

Maximum Flow Rating 1250

Maximum Pressure 100

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Internal Or External External Or Internal

Pump Design Rotary Vane

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Carburation & Fuel Injection

Inlet Type Female Thread

Inlet Outside Diameter ORB-12

Outlet Type Female Thread

Outlet Outside Diameter ORB-10

Maximum Current Draw 16 @ 45 psi

Voltage 12

Negative Ground Yes

Wire Quantity 0

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 2

Terminal Type Threaded Stud

Strainer Included No

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included No

Seal And Lock Ring Included No

Gasket Or Seal Included No

Grade Type Performance

Marine Approved No
