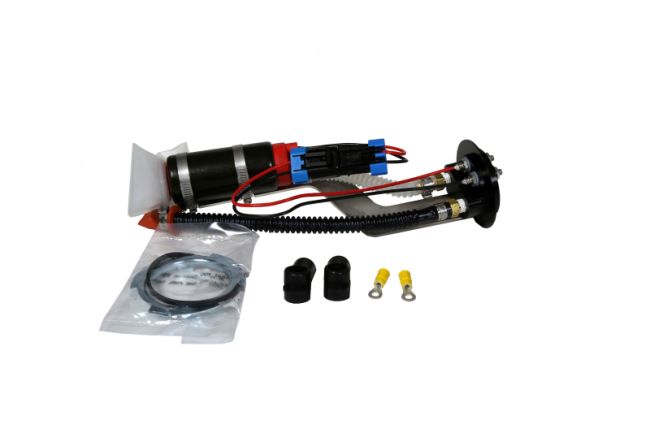

Aeromotive Ford Mustang (83-97) 340lph Fuel Pump & Hanger

Fox Body Mustang 83-97 Stealth 340, 450 or 525lph Fuel Pump & Hanger

Assembly Fits all 83-97 Mustang OEM - EFI Fuel Tanks

Billet Fuel Pump Hanger and High Flow 340, 450, or 525lph Stealth Pump assembly drops into stock tank.  Supports high-flow, high horsepower combinations in stock 83-97 Mustang EFI fuel tanks.  Eliminates fuel starvation and return aeration common to the factory Mustang hanger.

CNC machined billet aluminum hat fits stock opening, with ORB-06 outlet and return ports.

Supports AN-06 or AN-08 fuel lines with P/N 15606 or P/N 15649 port fittings respectively.

6065 aluminum hat is bright dip anodized black and laser engraved for good looks and durability.

Stainless Steel pump mounting bracket.

OEM grade convoluted tubing on supply and return for durability and high flow.

Extended, high flow return with anti-siphon eliminates aeration and cavitation.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

340 LPH (PART #18638)

Fuel Injected Engines:

Gasoline: up to 850 HP – naturally aspirated.

Gasoline: up to 700 HP – forced air induction.

E85: up to 595 HP – naturally aspirated.

E85: up to 490 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1000 HP – naturally aspirated.

Gasoline: up to 850 HP – forced air induction.

E85: up to 700 HP – naturally aspirated.

E85: up to 595 HP – forced air induction.

450 LPH (PART #19139)

Fuel Injected Engines:

Gasoline: up to 1,100 HP – naturally aspirated.

Gasoline: up to 800 HP – forced air induction.

E85: up to 750 HP – naturally aspirated.

E85: up to 550 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1,300 HP – naturally aspirated.

Gasoline: up to 950 HP – forced air induction.

E85: up to 900 HP – naturally aspirated.

E85: up to 700 HP – forced air induction.

525 LPH (PART #19140)

Fuel Injected Engines:

Gasoline: up to 1,200 HP – naturally aspirated.

Gasoline: up to 900 HP – forced air induction.

E85: up to 810 HP – naturally aspirated.

E85: up to 600 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1,400 HP – naturally aspirated.

Gasoline: up to 1,100 HP – forced air induction.

E85: up to 950 HP – naturally aspirated.

E85: up to 740 HP – forced air induction.
