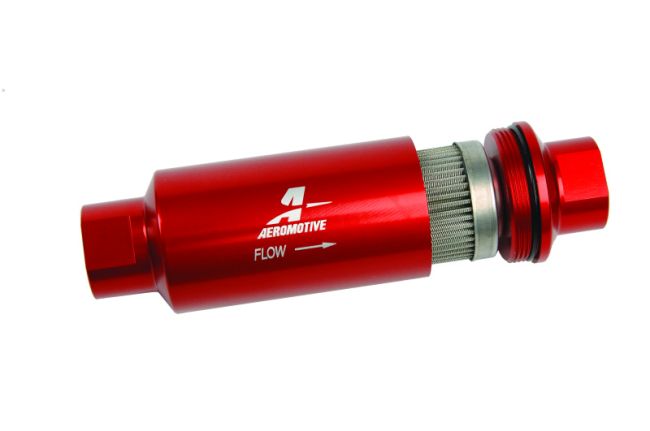

Aeromotive In-Line Filter - AN-10 100 Micron SS Element

P/N 12304: 100 Micron, ORB-10 Red Fuel Filter

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

High-flow, 100-micron stainless steel (coarse) cleanable element.

Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.

Compact size: 5.5' long x 2' diameter

ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

All filter assemblies feature an O-ring for positive sealing in high pressure applications.

CNC-machined from 6061-T6 aircraft aluminum.

Bright dip red anodized finish for a corrosion resistant, show car quality appearance.100-micron filters are designed for use between the fuel tank and the fuel pump to protect the pump.

Fuel Filter Style Inline

Fuel Type All Fuels

Inlet Quantity 1

Inlet Size AN-10

Inlet Attachment Female Thread

Inlet Outside Diameter AN-10

Outlet Quantity 1

Outlet Size AN-10

Outlet Attachment Female Thread

Outlet Outside Diameter AN-10

End 1 Gender Female

End 2 Gender Female

Fitting Type AN-10

Fittings Included No

Filter Element Included Yes

Filter Element Material Stainless steel mesh

Micron Rating 100

Smallest Particle Filtered 100 microns

Flow Rate 2000 Pounds Per Hour

Filter Housing Color Red

Filter Housing Finish Anodized

Filter Housing Diameter 2.0 Inches

Filter Housing Length 5.5 Inches

Filter Housing Material Billet Aluminum

Mounting Type External

Mounting Bracket Included No

Clamps Included No

Gasket Or Seal Included Yes

Maximum Fuel Pressure (psi) 70 PSI

Universal Or Specific Fit Universal
