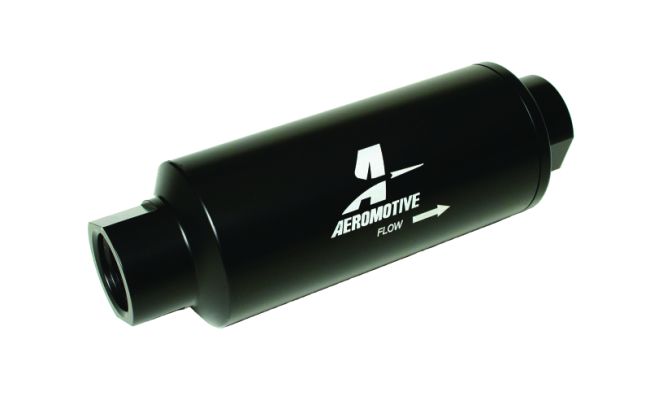

Aeromotive In-Line Filter - (AN-12 ORB) 10 Micron Microglass Element

P/N 12341: 10-Micron Microglass In-Line Filter with ORB-12 Ports

Finally, a place where bigger really is better. What defines an efficient filter? As little pressure drop as possible. How do you achieve a low pressure drop? Surface area. How do you get a lot of area into a compact in-line filter? Pleats. More pleats means more surface area an, in turn, better-flowing filters. Aeromotive in-line filters boast the most surface area possible for the highest flowing filters. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Fuel Filter Style Inline

Fuel Type All Fuels

Fuel Type E85/Alcohol

Inlet Quantity 1

Inlet Size AN-12

Inlet Attachment Female Thread

Inlet Outside Diameter AN-12

Outlet Quantity 1

Outlet Size AN-12

Outlet Attachment Female Thread

Outlet Outside Diameter AN-12

End 1 Gender Female

End 2 Gender Female

Fitting Type AN-12

Fittings Included No

Filter Element Included Yes

Filter Element Material Microglass

Micron Rating 10

Smallest Particle Filtered 10 microns

Flow Rate 2000 Pounds Per Hour

Filter Housing Color Black

Filter Housing Finish Anodized

Filter Housing Diameter 2.5 Inches

Filter Housing Length 7 Inches

Filter Housing Material Billet Aluminum

Mounting Type External

Mounting Bracket Included No

Clamps Included No

Gasket Or Seal Included Yes

Maximum Fuel Pressure (psi) 70 PSI

Universal Or Specific Fit Universal
