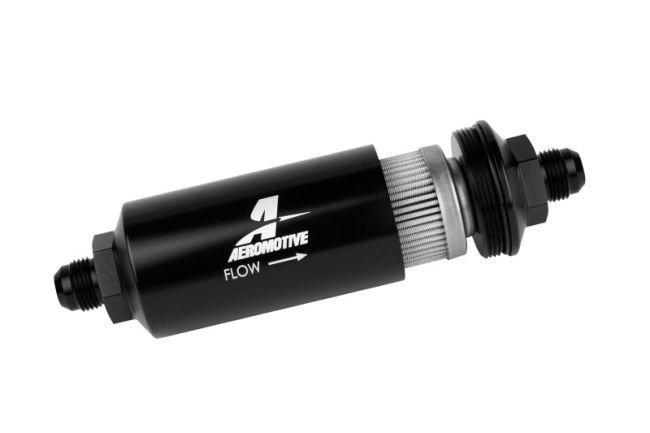

Aeromotive In-Line Filter - AN -8 Male 40 Micron Stainless Mesh Element Bright Dip Black Finish

P/N 12378: Male AN-08 Stainless 40m Filter

AN-08, 40 micron stainless steel element, black anodize finish

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

High-flow, 40-micron stainless steel cleanable element.

Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.

Males AN-08

All filter assemblies feature an O-ring for positive sealing in high pressure applications.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

CNC-machined from 6061-T6 aircraft aluminum.

Bright dip black anodized finish for a corrosion resistant, show car quality appearance.

Fuel Filter Style Inline

Fuel Type All Fuels

Inlet Quantity 1

Inlet Size AN-08

Inlet Attachment Male Thread

Inlet Outside Diameter AN-08

Outlet Quantity 1

Outlet Size AN-08

Outlet Attachment Male Thread

Outlet Outside Diameter AN-08

End 1 Gender Male

End 2 Gender Male

Fitting Type AN-08

Fittings Included No

Filter Element Included Yes

Filter Element Material Stainless steel mesh

Micron Rating 40

Smallest Particle Filtered 100 microns

Flow Rate 2000 Pounds Per Hour

Filter Housing Color Black

Filter Housing Finish Anodized

Filter Housing Diameter 2.0 Inches

Filter Housing Length 5.5 Inches

Filter Housing Material Billet Aluminum

Mounting Type External

Mounting Bracket Included No

Clamps Included No

Gasket Or Seal Included Yes

Maximum Fuel Pressure (psi) 70 PSI

Universal Or Specific Fit Universal
