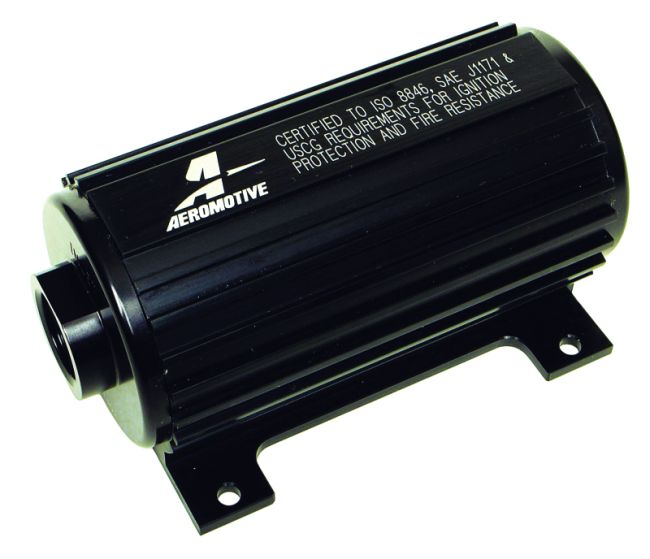

Aeromotive Marine 1000HP Fuel Pump

P/N 11108: Marine A100 Fuel Pump

For additional information on this product, see the A1000 Fuel Pump, P/N 11101

Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.

Carbureted Engines:

up to 1500 HP - naturally aspirated

up to 1200 HP - forced air induction

Fuel Injected Engines:

up to 1300 HP - naturally aspirated

up to 1000 HP - forced air induction

Series A1000

Maximum Flow Rating 1000

Maximum Pressure 100

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Internal Or External External Or Internal

Pump Design Rotary Vane

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Carburation & Fuel Injection

Inlet Type Female Thread

Inlet Outside Diameter ORB-10

Outlet Type Female Thread

Outlet Outside Diameter ORB-10

Maximum Current Draw 18 @ 45 psi

Voltage 12

Negative Ground Yes

Wire Quantity 0

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 2

Terminal Type Threaded Stud

Strainer Included No

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included No

Seal And Lock Ring Included No

Gasket Or Seal Included No

Grade Type Performance
