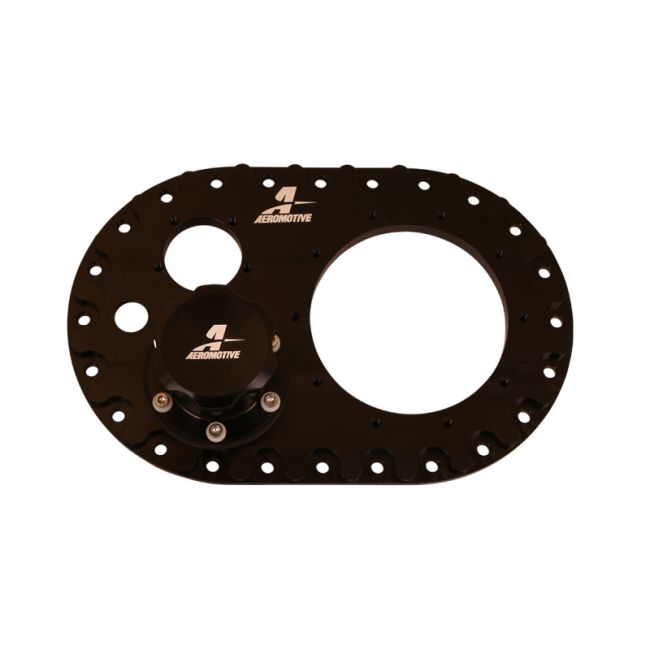

Aeromotive Mounting Plate/Standard Phantom - Fuel Cell

P/N 18056/18057 - Fuel Cell Plate for Fuel Pump and Accessory Mounting

Two Different Plate Configurations Allow for Pump Options to Suit Most Fuel Flow Requirements

Integrated Roll-Over Valve

Provisions for a Tube-Style Sending Unit

Billet Fuel Filler Neck and Cap

Bolt Pattern to Accommodate most Fuel Cells with 6" x 10" Outer Plate

Return Line Port Fittings Included

Nut Ring and Gasket Included

P/N 18056

Provisions for Aeromotive Phantom In-Tank Systems (Phantom 200, 340, Dual 340, and Flex) as well as In-Tank Fuel Cell Pump Line (A1000, Eliminator, 3.5 GPM, 5.0 GPM, 7.0 GPM, and 10 GPM TVS/Brushless/Brushed Pumps)

P/N 18057

Provisions for Aeromotive Trifekta In-Tank System (Triple 450 Pump Configuration)
