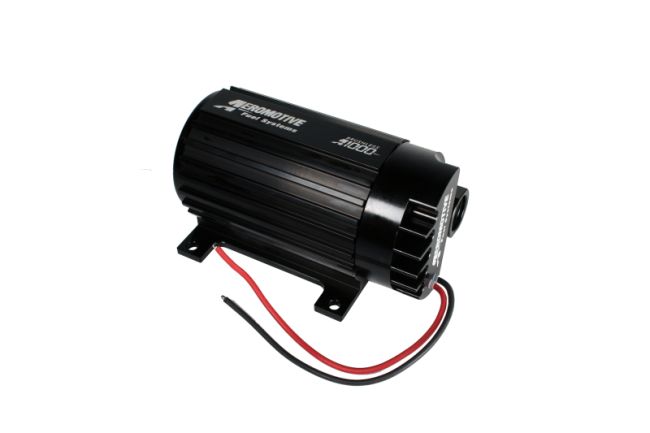

Aeromotive Variable Speed Controlled Fuel Pump - In-line - Signature Brushless A1000

A1000 Performance Plus Advanced Technology

The A1000 performance you expect and more:

Fuel Injected Engines: GAS

up to 1300 FWHP - naturally aspirated

up to 1000 FWHP - forced air induction

Carbureted Engines: GAS

up to 1500 FWHP - naturally aspirated

up to 1200 FWHP - forced air induction

Fuel Injected Engines: E85

up to 910 FWHP – naturally aspirated

up to 700 FWHP – forced air induction

Carbureted Engines: E85

up to 1050 FWHP – naturally aspirated

up to 840 FWHP – forced air induction

Lighter than the traditional A1000 pump.

Reduced current draw at higher, EFI pressures.

Extended service life in methanol and ethanol.

Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Quieter than the traditional A1000 pump.

ORB-10 inlet and outlet ports.

Requires straight 12-VDC to 16-VDC power supply.

Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.

Not compatible with pulse modulated systems or fuel pump speed controllers.

EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts

Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts

Series A1000

Maximum Flow Rating 1000

Maximum Pressure 90

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Internal Or External External Or Internal

Pump Design Rotary Vane

Motor Style Brushless

Integrated Controller No

Pulse Width Modulation Compatible No

Fuel Delivery Type Carburation & Fuel Injection

Inlet Type Female Thread

Inlet Outside Diameter ORB-10

Outlet Type Female Thread

Outlet Outside Diameter ORB-10

Maximum Current Draw 12 @ 40 psi

Voltage 12

Negative Ground Yes

Wire Quantity 2

Wiring Harness Included No

Terminal Quantity 0

Terminal Type Lead Wire

Strainer Included No

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included No

Seal And Lock Ring Included No

Gasket Or Seal Included No

Grade Type Performance
