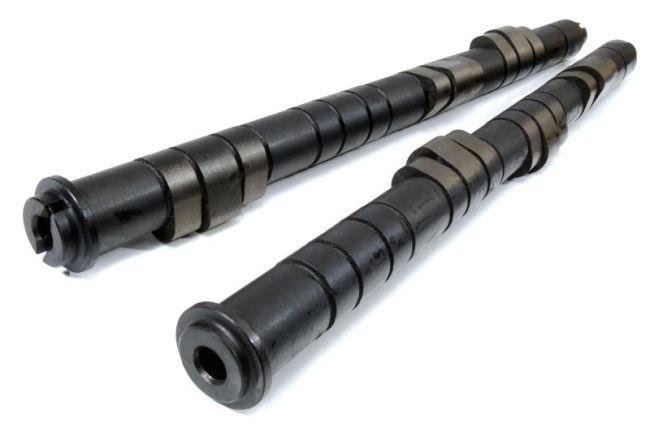

BLOX Racing D-Series Camshaft Stage 1 IN .405in Lift / Ex .383in Lift Upgr. Valvetrain Req.

BLOX Racing camshafts are designed and manufactured using OEM-spec, chill-cast camshaft cores.  BLOX Racing manufactures camshaft cores specifically tailored to the D16Z6, D16Y8, and D17A engines. MAY BE USED WITH Z6 WHEN USING BLOX CAM GEAR

Stage 1 Camshafts:
Ideal for stock to mild engine builds.
Upgraded valvetrain is not necessary but is always recommended.

Stage 2 Camshafts:
Ideal for mild to highly modified engine builds.
Upgraded valvetrain is required. Head porting is HIGHLY recommended.

Stage 3 Camshafts:
Ideal for highly modified to full race engine builds.
Upgraded valvetrain, cylinder head machining + porting, high compression pistons, and ECU tuning are ALL required.

Stage 1 Cam Specs @ 0.050"
INTAKE: 232° / 0.253” (Gross lift: 0.405")
EXHAUST: 211° / 0.213” (Gross lift: 0.383")
Stage 1 Spec Sheet
Stage 2 Cam Specs @ 0.050"
INTAKE: 242° / 0.268” (Gross lift: 0.429")
EXHAUST: 217° / 0.242” (Gross lift: 0.436")
Stage 2 Spec Sheet
Stage 3 Cam Specs @ 0.050"
INTAKE: 247° / 0.276” (Gross lift: 0.442")
EXHAUST: 230° / 0.255” (Gross lift: 0.459")
Stage 3 Spec Sheet
