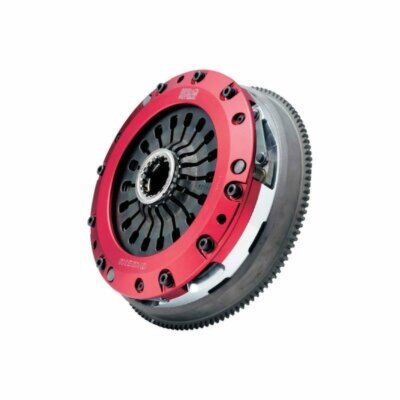

Genuine Nismo Nissan 350Z (07-09) & 370Z (09-20) Super Coppermix Twin Plate Clutch Kit & Flywheel - Push Type

A super-strong clutch that combines ease of operation with an output ceiling of more than 600ps-this was the development concept that launched the SUPER COPPERMIX TWIN.NISMO first floated this concept as a carbon twin product. Two years into its development, we decided that the low μ of carbon facings could not match the performance that COPPERMIX promised. We spent the next year and a half developing twin discs using COPPERMIX. This makes the SUPER COPPERMIX TWIN the culmination of three and a half years of testing and development. It is the ultimate model in the NISMO multi-plate clutch series.

Features:

Allowable dynamic friction torque measured at 84 kgf・m (static friction: 143 kgf・m) Can handle an estimated power of 670 ps
Using a centre hub increases the engagement surface between the clutch disc and the serrated section of the transmission's input shaft. This lowers the overall pressure on individual splines. It reduces wear to the input shaft and prevents disengagement problems. Having a centre hub also makes installation easier than for single clutches by eliminating the risk of damaging the splines or misaligning the 2 discs during clutch assembly.

The ideal weight for maximum torque was obtained by using a lightweight flywheel manufactured from specially crafted chrome molybdenum high-carbon steel.

The flywheel is provided with a special aluminium cover with exceptional heat-radiating properties.
The centre plate is equipped with a strap function*1 that also prevents any problems with disengagement. This mechanism leverages the reaction force accumulated by the strap plate to cause the pressure plate to constantly move away from the disc. It is employed as a standard part in manual transmissions and is installed in all production vehicles.
Allowable torque N・m (kgf・m) Kinetic friction: 762 (77.8),

Allowable torque N・m (kgf・m) Static friction: 990 (101),

Allowable output kW (ps): 320 (430),

Clutch cover Pressure N (kgf): 7840 (800),

Clutch cover Type: Push

Fit
Nissan 350Z (07+) VQ35HR
Nissan 370Z (09+) VQ37VHR

Please note

This is a special order part from Japan, we aim to despatch from our UK Warehouse within 2-3 weeks but sometimes authentic JDM products can be delayed. Our promise to you is we will ship out as soon as physically possible but please have patience when ordering this type of product. If the item is required urgently then please get in touch prior to ordering. If you need an item and can’t see it listed on our site please get in touch and we can help. Please note we cannot accept returns or cancellations on this item unless it’s a stocked item.
