Haltech IC-7 7in Color Dash Kit Size: 7in

DASH OVERVIEW

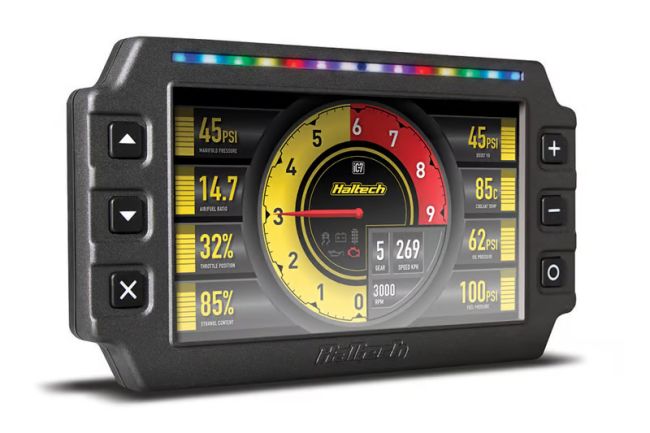

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

DesIgnitioned and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

Featuring custom screen displays,I/O sharing (for Haltech Elite & Nexus ECU's only), datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

Ideal replacement for individual analogue gauge clusters.
Easy to install and configure.

User adjustable brightness control with automatic dimming.

User configurable channels, units and alarms.

User definable Inputs & Outputs

9 x Analog Voltage Inputs (AVI)

3 x Digital Pulsed Inputs (DPI)

1 x Tachometer input

4 x Digital Pulsed Outputs (DPO)

14 programmable, seven colour shift light LEDs.

On-board datalogging (512MB)

Controlled via easily accessible, face-mounted control buttons.

Configuration via Haltech software and USB cable.

IP64 (Dust-tight and protected against water splashes).

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following generic aftermarket ECU protocols: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (including spare pins for input wiring), DTM-4 to DTM-4 CAN extension cable 3.0m (118in), USB to M5 right angle cable, USB Cable, Mounting Screws, Quick Start Guide, Haltech stickers and a fabric keyring tag

Notes: OBD-II and Stand-Alone versions also available.
