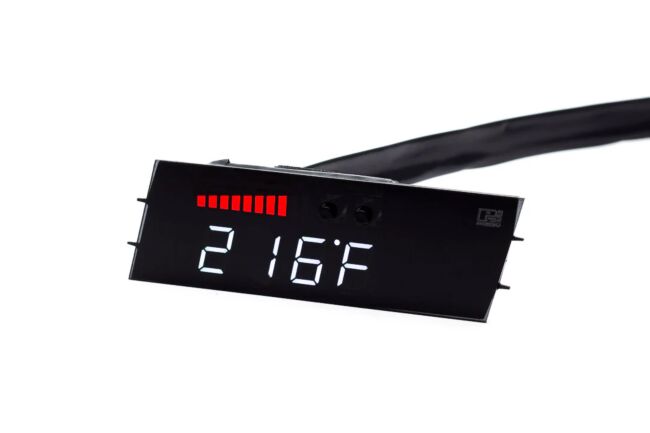

P3 Gauge Volkswagen Passat B6 (07-17) V3 OBD2 Gauge - Red & White

"<p><strong>P3 V3 OBD2 Gauge Basic Features</strong></p>
<ul>
<li>
<strong>Plug and Play Install</strong> - plugs directly into your OBD2 port (Want to keep your OBD2 port open? The P3 hard-wire harness kit also available)</li>
<li>
<strong>OEM Integration</strong> - installs in your vent for a sleek install while retaining air flow</li>
<li>
<strong>Versatility</strong> - read boost from multiple OEM sensors through OBD2 port or using optional P3 analogue boost sensor</li>
<li>
<strong>Code Reading/Clearing</strong> - read and clear diagnostic trouble codes (DTCs) on the fly</li>
</ul>
<h4>
<strong>P3 V3 Gauge Readouts </strong>(all readouts can be individually configured to read in either Imperial or Metric units)</h4>
<ul>
<li>
<strong>Boost</strong> (via OBD2 port using OEM sensors or P3 analogue boost sensor)</li>
<li><strong>Coolant temperature</strong></li>
<li>
<strong>Air/Fuel ratio</strong> (AFR or Lambda)</li>
<li>
<strong>Vehicle speed</strong> (can be calibrated in 1% increments from -9% to +20%)</li>
<li><strong>Intake air temperature</strong></li>
<li><strong>Throttle angle</strong></li>
<li><strong>Ignition timing</strong></li>
<li><strong>Engine RPM</strong></li>
<li><strong>Exhaust gas temperature</strong></li>
<li><strong>Battery voltage</strong></li>
<li><strong>Programmable shift light</strong></li>
<li>
<strong>analogue input 1</strong> (brown wire) can allow gauge to read any 0-5 volt linear output sensor</li>
<li>
<strong>analogue input 2</strong> (blue wire) can allow gauge to read any 0-5 volt linear output sensor</li>
<li>
<strong>Acceleration timers</strong> (0-60mph/0-100mph/60-130mph)</li>
<li>
<strong>Braking timers</strong> (60-0mph/100-0mph)</li>
</ul>
<h3><strong>Optional Add-Ons</strong></h3>
<ul>
<li>
<strong>P3 analogue Boost sensor </strong>- plugs directly into gauge harness, no wiring required)</li>
<li>
<strong>Boost tubing kit</strong> - Approx. 5' of 5/32"" O.D. flexible plastic boost tubing with vacuum ""T"" and 3 sections of 5/32"" I.D. vaccum hose. Includes 3 zip ties</li>
<li>
<strong>P3 ESVA (Ethanol Sensor Voltage Adaptor)</strong> allows your gauge to read ethanol content and fuel temperature directly from the common Continental/GM flex fuel sensor. *Ethanol sensor NOT included</li>
<li>
<strong>Trim Removal Kit</strong> - this tool kit will help you remove your vent and interior trim while minimizing the chance of scratching or damaging your trim</li>
<li>
<strong>OBD</strong><strong>2 Splitter</strong> - attach multiple devices to your OBD2 port. *some devices will not function while another device is attached to the OBD2 port</li>
</ul>
<p> </p>
