Skunk2 Acura RSX Type-S (02–06), Honda Integra Type R DC5 (01–06), Honda Civic Type R EP3 (01–05) - Oil Pan Baffle - Honda K Series - Drop In

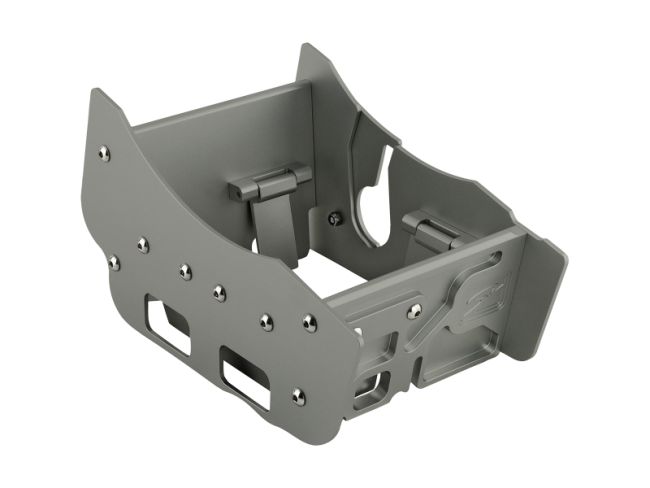

The Skunk2 Racing K-Series Billet Drop-in Oil Pan Baffle is a simple and effective way to prevent oil starvation relating to poor oil control in the oil pan. The Skunk2 baffle is made from anodized CNC machined 6061 aluminum and easily installs onto existing OEM Honda Oil Pans with no modifications required. The baffle is designed to prevent ‘daylighting’ of the oil pump inlet where the pump scavenges air as oil sloshes or climbs up the inside walls of the oil pan during hard cornering, braking, and acceleration. The design of the Skunk2 Racing Oil Pan Baffle effectively boxes in the immediate area surrounding the oil pump inlet, creating a sump within a sump, and features one-way trap doors that allow oil to freely flow into, but not out of, the inner sump area under high G loads. The Skunk2 Racing Oil Pan Baffle is recommended for any enthusiast who drives their K-Powered vehicle hard.

*Direct Drop In Fitment For: Honda K20A/K20A2/K20Z1/K24A

Features:

Prevents Oil Starvation When Hard Driving

Cost Effective Oil Control Solution

Open Top Design for Maximum Return Oil Flow

One-Way Trap Doors to Keep Oil in Sump Area

Easy Single-Bolt Installation (No Welding)

Anodized CNC Billet 6061-T6 Aluminum Construction

K-Series Engine Compatibility:

The Skunk2 Billet Drop-in Baffle is a direct bolt-in application for the JDM DC5/EP3 K20A Type-R Engine as well as the USDM 02-04 K20A2 and 05-06 K20Z1 Acura RSX Type-S engines.

Or

Any other K-Series engines as long as they are installed with the following compatible parts.

Honda Genuine Part Numbers:

Oil Pan – (11200-PRB-000 or 11200-RAA-A00)

Oil Pump – (15100-PRB-A01) or Similar

*Not Compatible with RRB oil pan

**Not Compatible with any oil pump assemblies with balance shafts

Drop In Applications:

2002-2006 Acura RSX Type-S (K20A2, K20Z1) - USDM

2001-2006 Honda Integra Type R DC5 (K20A) - JDM

2001-2005 Honda Civic Type R EP3 (K20A) - JDM

2001-2005 Honda Civic Type R EP3 (K20A2) - UKDM

K-series Engine Compatibility:

The Skunk2 Billet Drop-in Baffle is a direct bolt-in application for the JDM DC5/EP3 K20A Type-R Engine as well as the USDM 02-04 K20A2 and 05-06 K20Z1 Acura RSX Type-S engines. It is compatible with other K-series engines as long as they are installed with following parts:

RSX Type-S (K20A2) Oil Pan: Acura/Honda Part Number: 1200-PRB-000

RSX Type-S (K20A2) Oil Pump: Acura/Honda Part Number: 15100-PRB-A01

RSX Type-S (K20A2) Chain: Acura/Honda Part Number: 13441-PCX-004

RSX Type-S (K20A2) Chain Guide: Acura/Honda Part Number: 13460-PNC-004

Applications:

APPLICATIONS: USDM 02-04 RSX Type-S (K20A2) USDM 05-06 RSX Type-S (K20Z1) JDM K20A Engines (EP3 Civic/DC5 Integra Type-R) UKDM K20A2 Engines (EP3 Civic Type-R) Will fit other Honda K-Series with all of the following modifications: RSX Type-S (K20A2) Oil Pan: Acura/Honda Part Number: 1200-PRB-000 RSX Type-S (K20A2) Oil Pump: Acura/Honda Part Number: 15100-PRB-A01 RSX Type-S (K20A2) Chain: Acura/Honda Part Number: 13441-PCX-004 RSX Type-S (K20A2) Chain Guide: Acura/Honda Part Number: 13460-PNC-004

Fits
Honda K20
Honda K20A
Honda K20Z
Honda K24
Honda K24A
Honda K24Z
