Skunk2 Honda B-, D-, F- And H-Series Applications - MAP Sensor - Honda B/D/F/H Series - 4 Bar

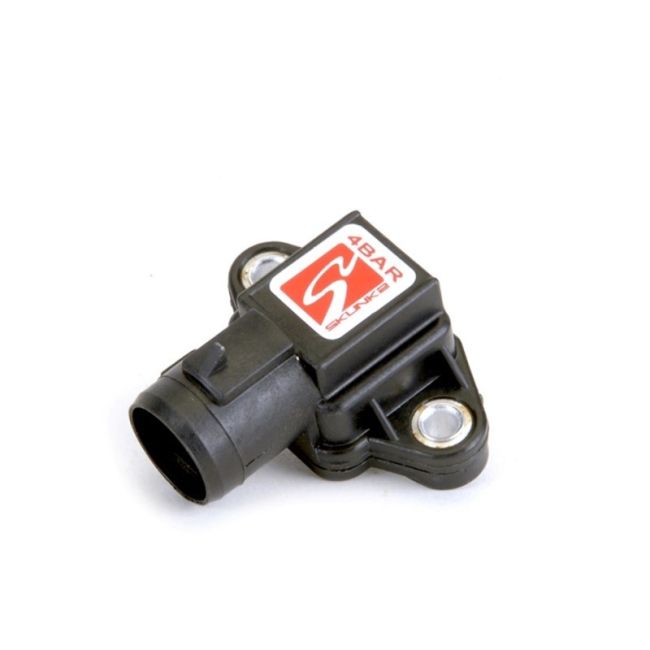

Skunk2 MAP Sensor are direct replacement sensor for Honda B/D/H/F Series engines that is designed for forced induction application. Each Skunk2 MAP Sensor features a state-of-the-art sensor on chip technology that accurately and precisely measures up to 43.5psi of boost.

Features:

For Forced Induction Applications

High Accuracy and Precision

Water and Heat Resistant

Direct Replacement for OEM

*Does not fit F22C Engine with Drive By Wire Throttle Body

Reference:

1 BAR is for a normally aspirated engine

2 BAR will handle a forced induction up to 14.5 psi of boost

3 BAR will handle a forced induction up to 29.0 psi of boost

4 BAR will handle a forced induction up to 43.5 psi of boost

A vehicle's computer is calibrated to function at a specific level as programmed by the design engineer. A 2, 3, or 4 BAR MAP sensor placed in a system designed for a 1 BAR sensor will not function correctly; in fact, the system will run very rich because of the low return voltage signal. A computer that is programmable is a must for any tuner attempting to boost their engine's output with the addition of a turbocharger and a 2, 3, or 4 BAR MAP sensor.

Fits
Honda B16A/B
Honda B17A
Honda B18A
Honda B18B
Honda B18C
Honda B20B
Honda B20Z
Honda D15B
Honda D15Y
Honda D16Y
Honda D16Z
Honda F20C
Honda F22C
Honda H22A
Honda H23A
