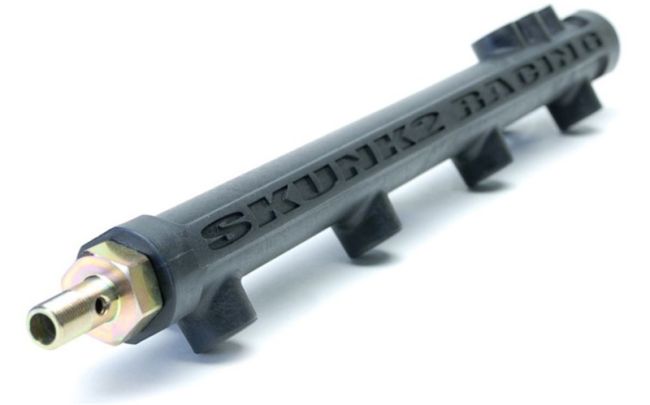

Skunk2 Honda B-Series Applications - Fuel Rail - Composite

Skunk2’s Composite Fuel Rails are made using a proprietary carbon-impregnated, aerospace thermo-polymer composite - a material that is 33-percent lighter, 60-percent stronger, and operates up to 100-degrees (F) cooler when compared to aluminum. The Composite Fuel Rail insulates fuel from both radiant and conductive heat transfer underneath the hood better than aluminum, resulting in increased horsepower and torque.

Composite Fuel Rails also feature large 0.625-inch internal bores for superior fuel injector pulsation dampening, machined with a smooth interior finish and feature radius-cut fuel injector outlets for improved flow characteristics. Conventional extruded and drilled aluminum rails are typically flawed by design due to machine limitations, resulting sharp internal angles where the main bore meets the fuel injector bores. Eliminating this design flaw limitation can only be achieved with the natural-flow-moldable composite materials. Skunk2’s B-series Composite Fuel Rails are compatible with the factory fuel system, as well as all pump and race fuels, including alcohol. The Skunk2 Composite Fuel Rail can support up to 1,200hp, with gains as high as three percent realized during testing.

Features:

Supports up to 1,200HP

Proprietary carbon-impregnated aerospace thermo-polymer composite

Better thermal protection over aluminum

Operates up to 100-degrees (F) cooler

33-percent lighter, 60-percent stronger

Large 0.625-inch internal bores for superior fuel injector pulsation dampening

Integrated -8 AN inlet and outlet for easily customized fuel lines

Features OEM fuel pressure regulator provisions

Features additional 1/8-inch NPT fuel pressure port

Fits
Honda B16A/B
Honda B17A
Honda B18C
