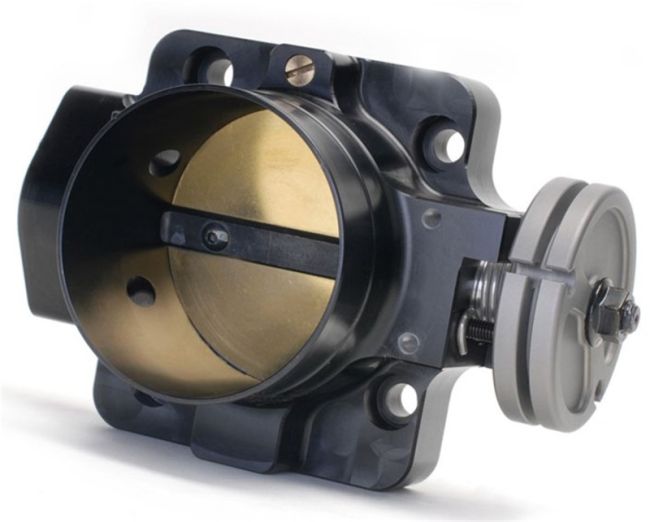

Skunk2 Honda B16, B17, B18, B20, D15, D16, F20, F22, F23, H22 And H23 Applications (88–05) - Pro Throttle Body - B/D/F/H Series - Black - 70mm

Skunk2 is proud to introduce the 70mm Pro Series Throttle Body for Honda B16/ B17/ B18/ B20/ D15/ D16/ F20/ F22/ F23/ H22 and H23 engines found in a number of chassis from 1988-2005.

A larger throttle body is key to producing additional power throughout the powerband on modified engines with increased airflow demands and the Skunk2’s 70mm Pro Series Throttle Body delivers! Sealed ball bearings, a precision machined throttle plate and a honed oversized bore insures smooth operation on the most aggressive naturally aspirated and forced induction applications.

Features:

CNC Machined from Forged Billet 6061-T6 Aluminum

Black Anodized for Corrosion Resistance and Durability

Precision Machined Brass Throttle Plate

Compatible w/ OEM Throttle Cable

Sealed Ball Bearings for Smooth Operation

New Throttle Body Gasket and Hardware

Due to Larger Diameter... You Must Use A Skunk2 Pro Series Intake Manifold or Make Adjustments to Intake Manifold Throttle Body Flange to Match Bore and Keep IAC (Idle Air Control) Passage Separate. Not compatible with D Series engines featuring down-flow intake manifolds. Manual Transmission Only.

Fits F20C but NOT the F22C

Fits
Honda B16A/B
Honda B17A
Honda B18A
Honda B18B
Honda B18C
Honda B20B
Honda B20Z
Honda D15B
Honda D15Y
Honda D16Y
Honda D16Z
Honda F20C
Honda F22C
Honda H22A
Honda H23A
