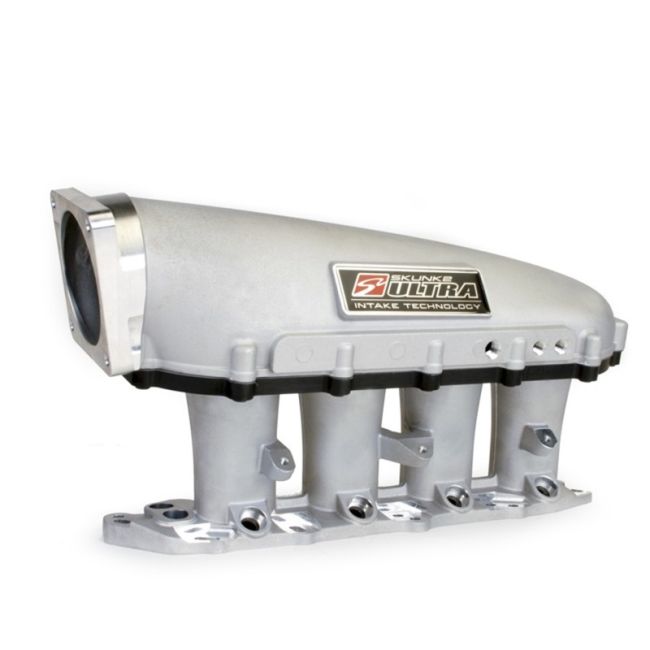

Skunk2 Honda B16A, B17A And B18C VTEC Applications - Ultra Race Intake Manifold - B VTEC - Black Adapter

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads!

The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

FEATURES:

Modular 3pc. Design w/ Removable Plenum

3.5L Plenum Volume**

90mm Throttle Body Flange - Std. 5.0L Ford Pattern

6.5” Tilted & Tapered Hi-Velocity Runners

Raised 87mm Velocity Stacks

Generously Cast Runner Walls for Porting

Provisions Secondary Fuel Rail & Injectors

4 x 1/8” NPT, 2 x 1/4” NPT and 1 x OEM AIT Port

Hi-Grade Mounting Hardware

Thermal Gasket Included

Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes

**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes

US Patent: D673977

RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE

3.5 Liter > High Horsepower N/A and Forced Induction Applications to 600HP

4.5 Liter > 600-1000HP

5.5 Liter > 1,000HP Up

US Patent: D673977

Fits
Honda B16A/B
Honda B17A
Honda B18A
Honda B18B
Honda B18C
Honda B20B
Honda B20Z
