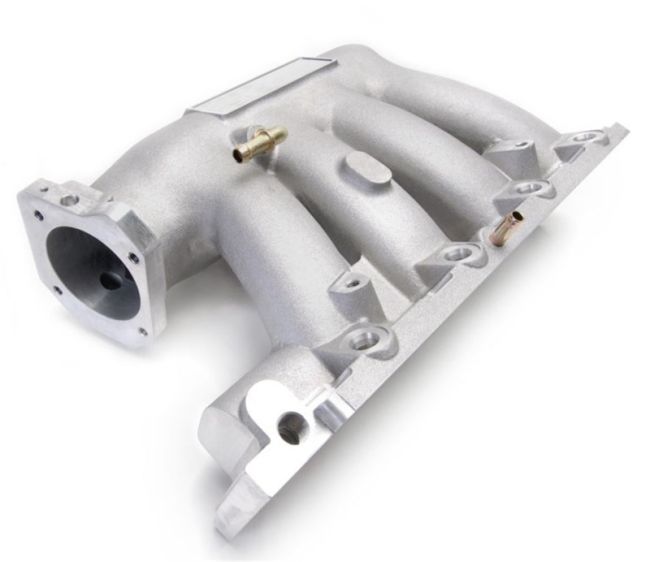

Skunk2 Honda Civic Si K20Z3 (06–11) - Pro Intake Manifold - K20Z3 Style

The Skunk2 Pro-Series Intake Manifold for Honda K20Z3 VTEC engines is a high flowing direct replacement for RBC fitment manifolds. This versatile one-piece intake manifold is cast from aircraft grade A356 aluminum and designed with an oversized plenum and large tapered runners to optimize mid to peak power and torque. The design was based on the venerable Honda RBC intake manifold, but Skunk2 further improved the airflow and performance by shortening and enlarging the runners, enlarging the plenum, and improving the runner-entries as they transition from the plenum.

The Skunk2 Pro Series Manifold is more compact and sits at a lower angle than the RBC manifold and allows for ample hood clearance for even the tightest K-swaps into Honda EF/DA chassis. For those planning on porting their intake manifolds, Skunk2 incorporated thick-wall runners into the design that allow the runners to be ported to sizes larger than what is possible with the RBC, in other words, the Skunk2 Pro Series Manifold for K engines has more ultimate performance potential than the Honda RBC Manifold.

Each manifold is vacuum tested, and finished-off with our Signature Skunk2 Pro-Series nameplate.

Features:

Cast from Aircraft Grade A356 Aluminum

Oversize Plenum and Long Tapered Runners for Maximum Power

Improved Airflow and Enhanced Venturi Effect

Bolt-on Fitment Compatible with all OEM Sensors

72mm Throttle Body Opening Can be Port-Matched up to 76mm

Ideal for Turbocharged and Naturally Aspirated Applications

Only compatible with 2006-2011 Civic Si (K20Z3) K-series Engine

Recommendations:

Fuel Rail:

Composite Fuel Rail - (P/N 350-05-5015)

Throttle Bodies:

Alpha Throttle Body 70mm - (P/N 309-05-1060)

Alpha Throttle Body 74mm - (P/N 309-05-1070)

Sensors:

TPS Sensor - (P/N 352-05-1410)

Map Sensor 3 Bar - (P/N 352-05-1515)

Map Sensor 4 Bar - (P/N 352-05-1500)

Thermal Gaskets:

Intake Manifold Gasket (Fits S2 Pro Only) - (P/N 372-05-0370)

Fits
Honda K20Z3
