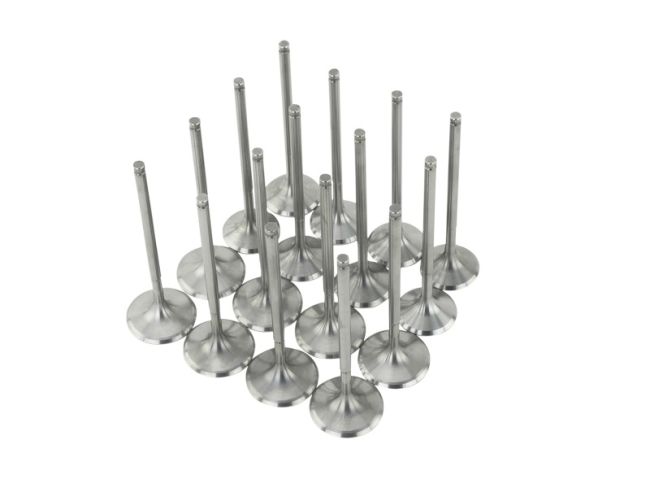

Skunk2 Honda K20 And K24 Applications - Ultra Valves - K Series - STD Comp - 35mm/30mm

Skunk2 Ultra Series Valves for the Honda K20 and K24 are our premium line of valves; manufactured from HNV-3 martensitic steel (IN) and EV8 austenitic steel (EX) one-piece forgings. The characteristics of the austenitic nickel based alloy enable high resistance to oxidation and corrosion and are designed for engines that output extremely high temperatures. Ultra Series valves are heat-treated using a proprietary process for extraordinary strength and durability and Chromium Nitride coated using the physical vapor deposition (PVD) process. This coating significantly improves wear and heat resistance, creating conditions for more durability and long term usage. Chromium Nitride coating is a remarkable solution as it improves the friction coefficient between the valve’s stem and valve guide; a necessity for engine components that demand resistance to high heat level environments.

Other valves may appear similar, but only Ultra Series Valves feature specially designed valve head profiles to optimize airflow. Skunk2 designs, develops, and tests its entire valvetrain lineup in-house to ensure superior quality and maximum performance gains. Skunk2 valvetrain components provide exceptional performance, reliability, and quality and are standard-issue on each Skunk2 vehicle that we build and support.

Features:

Overall Valve Length (Intake/Exhaust): 109mm/ 108.6mm

Head Diameter (Intake/Exhaust): 35.00mm/ 30.00mm

Stem Thickness (Intake/Exhaust): 5.48mm/ 5.45mm

One-Piece Forged

Stainless-Steel Alloy Construction

Std. Intake/ Std. Exhaust - Dished Head - Std. Comp

3-10g Lighter Than Stock

Proprietary Heat Treatment

Chromium Nitride Coating

Optimum Sealing, Airflow, And Stability

Recommendations:

Add Skunk2 Pro XP or Alpha Series Valve Springs and Pro Ti Retainers for ultimate valvetrain stability

Alpha Series Valve Springs and Titanium Retainers (P/N 344-05-1410)

Alpha Series Valve Springs (P/N 311-05-1380)

Pro XP Valve Springs (P/N 311-05-7380)

Pro Ti Retainers (PN 308-05-0410)

**Skunk2 PN 312-05-0010 (Spring Bases) are used to Install Dual Springs in Single Spring K Series Heads or Install Skunk2 Valve Springs in F20C/F22C Engines.

Must Purchase New Valve Seals (P/N 312-05-0100) to install these Springs Bases.

Fits
Acura RSX 2002 - 2006
Acura TSX 2004 - 2008
Honda Accord 2004 - 2007
Honda CR-V 2002 - 2009
Honda Civic 2002 - 2011
Honda Element 2003 - 2011
Honda K20
Honda K20A
Honda K20Z
Honda K24
Honda K24A
Honda K24Z
