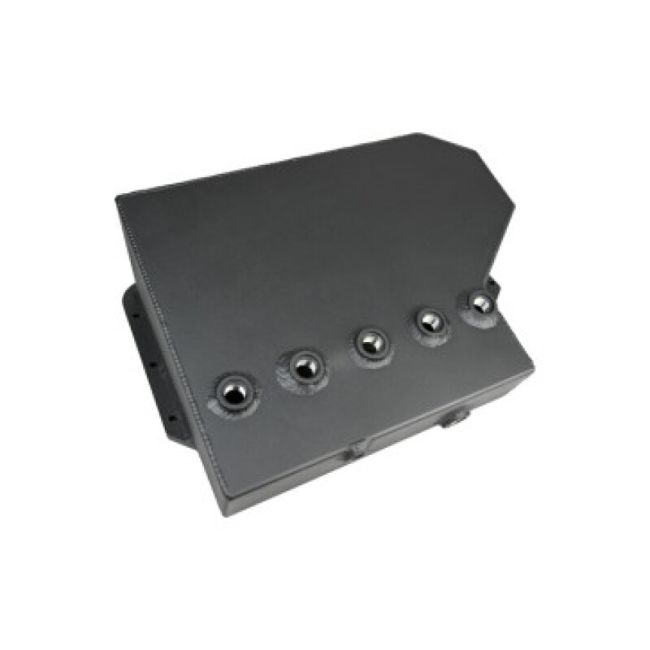

Skunk2 Honda K20A, K20A1, K20A2, K20A3, K20A4, K20A6, K20A7, K20A9, K20Z1, K20Z3, K24A, K24A1, K24A2, K24A3, K24A4 And K24A8 Applications - K-Series Oil Pan For Lean Mounts

Racing places the vehicle’s engine under extreme abuse, but ensuring it has the proper oil flow is key. The Skunk2 Racing K-Series Aluminum Racing Oil Pan is a necessary addition to any high-performance K20 or K24 engine that needs improved oil control during high G-force operation*. Skunk2’s K-Series Oil Pan is made from TIG welded aircraft grade 5052 aluminum and features a baffled sump with trap doors. This allows oil to freely flow in while preventing oil from flowing out and ensures that the oil pump pick-up is surrounded by oil when the vehicle is experiencing high G-Forces.

The Skunk2 Racing K-Series Aluminum Racing Oil Pan’s design allows the oil to be flung away from the crankcase into the ‘kick-out,’ reducing windage-related power losses and reducing oil aeration for improved oiling performance. The ‘kick-out’ on the oil pan is also designed for improved windage control, reduced aeration, and increased oil capacity, improving engine power and reliability. The Skunk2 Racing K-Series Aluminum Racing Oil Pan features a billet flange 10.5mm thick, -10AN turbo oil return port, nine-quart oil capacity, and decreased weight over steel counterparts, all while improving the ground clearance on the vehicle.

*For road race applications, we recommend adding an Accusump for added insurance.

/// Features

- Baffled Sump With Trap Doors

- Kick Out Pan Design

- Improved Ground Clearance

- 9-Quart Oil Capacity

- Made From Aircraft Grade 5052 Aluminum

- Gun Metal Wrinkle Powder Coating

/// Fitments

- K20A, K20A1, K20A2, K20A3, K20A4, K20A6, K20A7, K20A9

- K20Z1, K20Z3

- K24A, K24A1, K24A2, K24A3, K24A4, K24A8

*Requires the use of PRB oil pump from K20 series engine

/// Fitments

- K20A, K20A1, K20A2, K20A3, K20A4, K20A6, K20A7, K20A9

- K20Z1, K20Z3

- K24A, K24A1, K24A2, K24A3, K24A4, K24A8

*Requires the use of PRB oil pump from K20 series engine

Fits
Honda K20
Honda K20A
Honda K20Z
Honda K24
Honda K24A
Honda K24Z
