Tomei Mitsubishi Lancer Evolution 1, 2, 3, 4, 5, 6, 7, 8 & 9 (92-07) 4G63 Stroker Kit - 2.3L 86.00mm CP Pistons

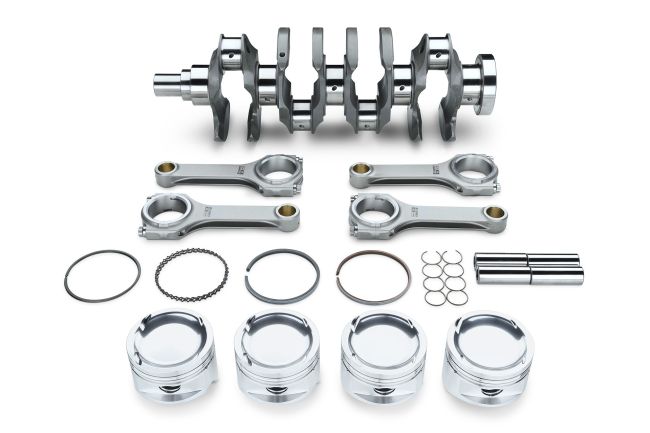

The Tomei TA201A-MT01BP CP Piston Stroker Kit is engineered for the Mitsubishi Evolution 1-9, specifically designed to enhance the performance of the 4G63 engine. This kit features a combination of forged pistons and a stroker crankshaft, which significantly increases engine displacement, resulting in improved torque and power delivery. Ideal for those looking to push their Evo's capabilities to the next level, this kit is built for reliability under high-stress conditions.

Key Features
Increased stroke length enhances engine displacement for greater torque and power.
Forged pistons designed to withstand higher stress and heat levels.
Optimized for high-performance applications, capable of handling increased loads.
Engine displacement increased through altered stroke length.

Specifications
Model: Mitsubishi 4G63
Bore: 86.00 mm (OEM +1.0 mm)
Stroke: 100.00 mm (OEM +12.0 mm)
Displacement: 2323 cc
C.C. Volume: 43 cc
Piston Volume: -19 cc
Piston Deck Clearance/Height: -0.3 mm
Piston Comp. Height: 31.65 mm (OEM -3.35 mm)
Rod C-to-C: 147.00 mm (OEM -3.0 mm)
Head Gasket Bore: 86 mm
C/R with 86.5-1.0: 9.2
C/R with 86.5-1.2: 9.1
C/R with 86.5-1.5: 8.9
C/R with 86.5-1.8: 8.7
Shipping Size: 23 x 12 x 16 inches
Shipping Weight: 47 lbs

Fitment
Mitsubishi EVO 1-9 4G63 (1992-2007)
