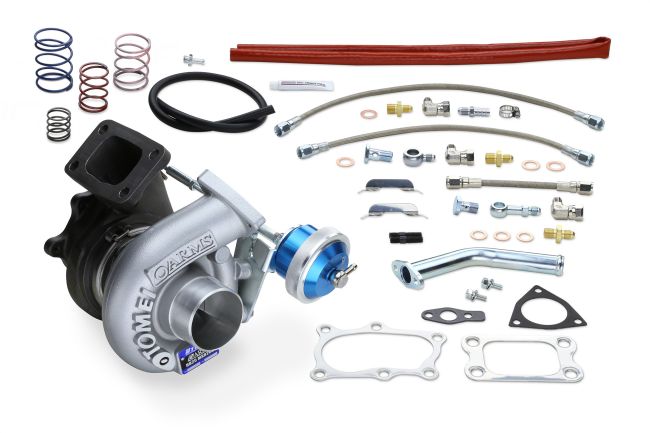

Tomei Nissan Skyline R32, R33 & R34 (89-02) RB25DET MX8265 Journal Bearing Turbocharger with Billet Actuator

Tomei Arms MX8265 Turbocharger for RB25DET
The Tomei Arms MX8265 Turbocharger is engineered specifically for the Nissan RB25DET powertrain, delivering a robust 450HP capability. This turbocharger builds on the foundation of Tomei's original M-Series design, incorporating a lightweight billet compressor wheel and a multi-rate billet actuator for enhanced performance and reliability.

Key Features
Billet Compressor Wheel: Crafted from aerospace-grade materials, this newly designed wheel offers improved airflow due to its thinner blades and larger surface area, resulting in quicker turbo spool times compared to traditional cast wheels.
Multi-Rate Billet Actuator: The actuator features a reinforced forged billet construction and includes six springs for precise boost adjustments. Up to three springs can be combined for optimal tuning flexibility. Its swivel-type nipple design allows for easier hose routing.

Specifications
Model Compatibility: Nissan RB25DET, Nissan RB25DET NEO6
Compressor Wheel:
Inducer Diameter (mm): 54
Exducer Diameter (mm): 76
Material: A261
Production: CNC Billet
Turbine Wheel:
Exducer Diameter (mm): 58
Inducer Diameter (mm): 6
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
Inducer Diameter (mm): 55
Exducer Diameter (mm): 42.6
A/R: 0.57
Turbine Housing:
Inducer: T
Exducer: RB26DE
A/R: 0.57
Initial Boost Setting: 1.0 kgf/cm

Fitment
Nissan Skyline R32 (1989-1994)
Nissan Skyline R33 (1993-1998)
Nissan Skyline R34 (1998-2002)
