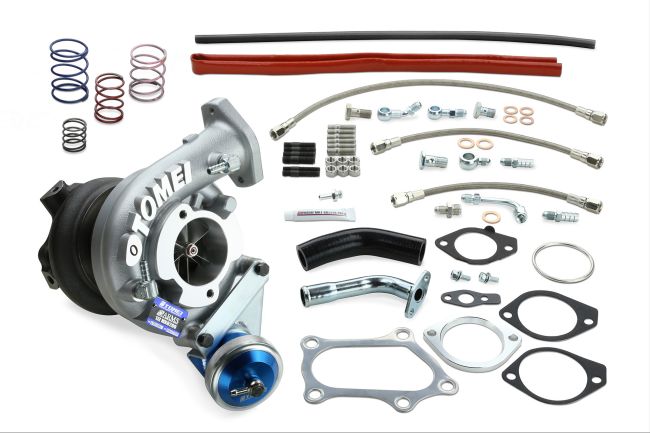

Tomei Toyota Chaser (JZX100) & Mark 2 (JZX100) (96-01) 1JZ-GTE MX8280 Journal Bearing Turbocharger with Billet Actuator

If youre looking to elevate the performance of your Toyota 1JZ-GTE, the Tomei Arms Mx8265 Turbocharger is a game changer. This turbocharger kit is capable of delivering up to 450HP, making it an excellent choice for those who crave power and responsiveness.

Key Features
Multi Range Billet Actuator: This turbocharger comes equipped with a robust multi-rate billet actuator, featuring a reinforced forged construction. It includes six springs for precise boost adjustments, allowing you to mix and match up to three springs for the ideal setup. The swivel-type nipple enhances flexibility when routing hoses.
Billet Compressor Wheel: The newly designed compressor wheel is crafted from aerospace-grade materials, offering a significant upgrade over traditional cast wheels. Its lightweight design and thinner blades improve airflow and turbo spool, giving you that quick response you desire on the road or track.

Specifications
Model: Toyota 1JZ-GTE
Compressor Wheel:
(A) IND (mm): 61
(B) ExD (mm): 82
Trim: 5
Material: A261
Production: CNC Billet
Turbine Wheel:
(C) ExD (mm): 58
(D) IND (mm): 67
Trim: 7
Material: K41
Production: Cast
Compressor Housing:
IND (mm): 62
ExD (mm): 40.2
Turbine Housing:
IND: 4B1
ExD: 4B1
A/R: 0.89
Initial Boost Setting: 1.0 kgf/cm

Fitment
Toyota 100 Chaser (1996-2001)
Toyota 100 Mark II (1968-2004)
