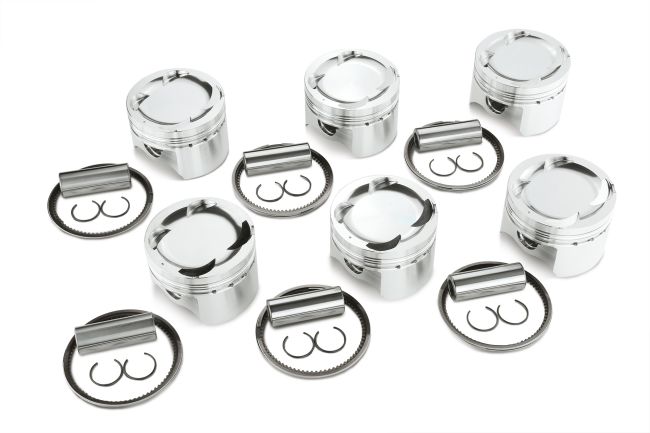

Tomei Toyota Supra (93-02) 2JZ-GTE Forged CP Piston Set - 87.00mm / CH34.00 (STD)

The Tomei Forged Piston Kit (87.00mm, CH34.00) is meticulously crafted for the 1993-2002 Toyota 80 Supra equipped with the legendary 2JZ-GTE engine. This kit is designed to elevate your engine's performance and longevity, providing a robust upgrade for those seeking enhanced power delivery and responsiveness. With its precision engineering, the Tomei kit ensures that every drive feels more dynamic and engaging.

Features
Lightweight yet high-rigidity forged piston for optimal performance
Exclusive forging material tailored for the 2JZ-GTE platform
Advanced 3D profile for improved combustion efficiency
Compatible with 1mm oversized valves for enhanced airflow
Engineered for thin piston rings, reducing friction and wear
Includes all necessary pins, clips, and rings for a complete installation

Technical Specs
Model: Toyota 2JZ-GTE
Bore: 87.00 mm (OEM +1.0)
Pin Diameter: 22 mm
Pin Length: 60 mm
Circlip Inner Diameter: 22 mm
Compression Height: 34.00 mm (OEM 0.0)
Piston Volume: -14 cc
Piston Weight: 369 g
Pin Weight: 121 g
Total Weight: 490 g
Top Ring: 1.20 x 3.0 mm
Second Ring: 1.20 x 3.9 mm
Oil Ring: 2.50 x 2.9 mm
Piston Material: A403

Fitment
Toyota 80 Supra (1993-2002)
