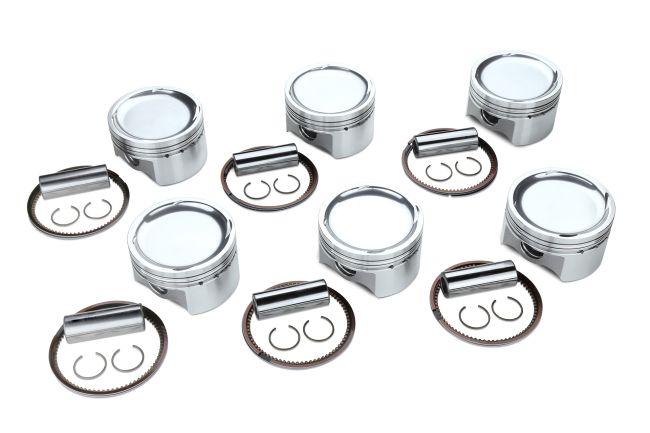

Tomei Toyota Supra (93-02) 2JZ-GTE Forged Piston Set - 87.00mm / CH29.50 (3.6)

Tomeis extensive experience in motorsports means they understand the stresses that high-performance engines endure. Each component is crafted from the highest quality materials, designed to handle the intense heat and pressure that comes with pushing your vehicle to its limits. The TA202A-TY03B piston is no exception, featuring meticulous engineering and strict tolerances to prevent catastrophic engine failures.

Technical Specifications
Model: Toyota 2JZ-GTE
Bore: 87.00 mm (OEM +1.0)
Pin Diameter: 22 mm
Pin Length: 60 mm
Clip Inner Diameter: 22 mm
Comp. Height: 29.50 mm (OEM -4.5)
Piston Dome Volume: -22 cc
Piston Weight: 278 g
Pin Weight: 121 g
Total Weight: 400 g
Top Ring: 1.20 x 3.0 mm
Second Ring: 1.20 x 3.9 mm
Oil Ring: 2.50 x 2.9 mm
Material: A4032

Fitment
Toyota Supra 1993-2002 (80 Series)

Upgrade your 2JZ-GTE engine with the Tomei TA202A-TY03B piston and experience the difference that quality engineering can make in your performance build.
