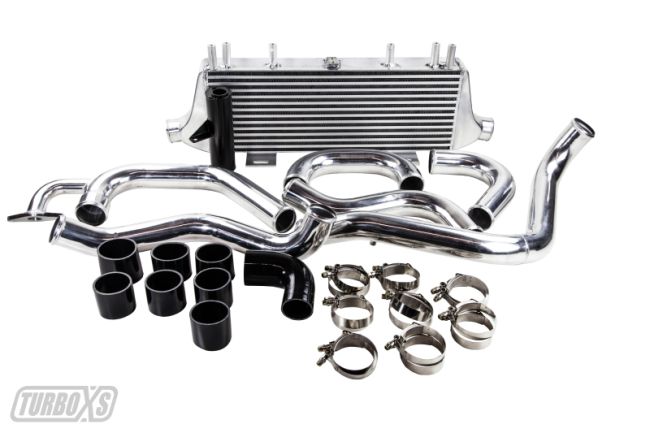

TurboXS Subaru WRX & STi (02-05) Front Mount Intercooler *Use Factory BOV/CrashBeam Built In/BOV Not Included*

1 - Turbo Outlet Pipe

2-  Drivers Side/Battery Pipe

2a-  Drivers Side/Battery Pipe (06-07)

3-  Drivers Side U Bend

3a-  Drivers Side U Bend (06-07)

4-  Passenger Side Off IC

5-  S Bend Pipe

6-  Throttle Body Pipe

A-  Turbo Outlet Silicone (ER5163 Blue or Black)

B-  Straight Coupler (SC63-Blue or Black)

C-  Throttle Body Coupler (SC70 Blue or Black)

D-  Intercooler Core (Bumperbeam Integrated)

E-  Coolant Overflow

T55-61 Tbolt Clamp (Turbo Outlet)

T73-81 Tblolt Clamp (Throttle Body)

T67-73 Tbolt Clamp (All Other Clamps)
