Z1 Motorsports Nissan 370Z (09-20) / Infiniti G37 (08-13) Billet Fuel Pump Top Hat Upgrade
Product Code: Z1-370Z-B-FP-UP
- Usually Ships 1-2 Weeks
- 4 months at 0% interest with PayPal (orders £99+)
Deposit amount must be greater than or equal to .
Tarmac Sportz have partnered up with Z1 Motorsports to be the UKs approved distributor and fitter for all of their products.
Benefits of Buying Z1 products from Tarmac Sportz
- Assurance of authenticity.
- Access to manufacturer warranties.
- Reliable customer support.
- Peace of mind.
- Tried and tested products.
- Exclusive offers and pricing.

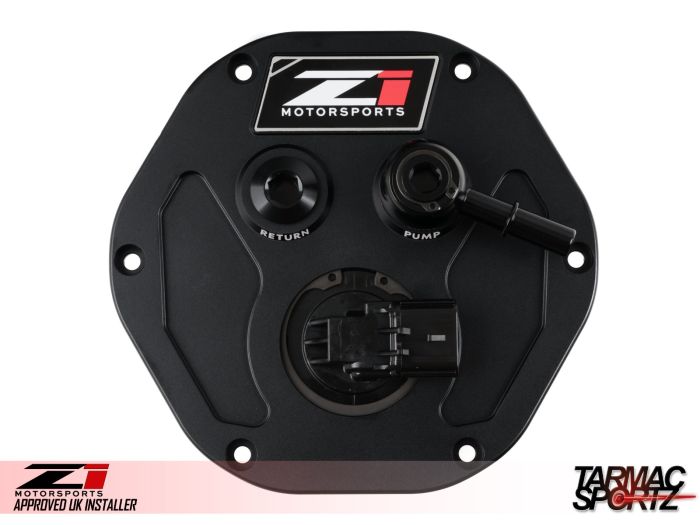

Z1's Billet Fuel Pump Top Hat for the 370Z and G37 is a complete upgrade for the factory plastic top hat found on the original fuel pump assembly. It can be assembled to be used with the stock return-less fuel system or with an aftermarket return-style fuel system and allows you to plumb returned fuel directly into the tank with minimal modification to the plastic fuel pump sending unit.
The plastic top hat on the factory fuel pump assembly is a common failure point, breaking where the support rods attach the basket to the hat. This occurs as high g-forces coupled with the motion of the fuel in the tank over-stress the plastic, allowing the lower portion of the assembly to break free and fall into the tank.
To counter this problem, Z1's engineering team designed a billet hat that attached to the pump basket with two thread-in stainless steel rods. This method promises unmatched durability, ensuring your Z is ready for whatever you throw at it, whether you're at the track or on your daily commute. A 6-pin Apex 2.8 Bulkhead Connector is used to power the pump, providing an OEM-level connection with the capability of handling higher current draw of upgraded fuel pumps. Installation requires wiring into the factory wire harness. For this reason, professional installation is recommended.
OPTIONS
The Z1 Billet Top Hat can be purchased in two configurations to accommodate factory-style returnless fuel systems or aftermarket-style return fuel systems.
Returnless Fuel System - If purchasing this option, you will receive a slim 8AN ORB plug to be used in the pre-machined return port and associated installation hardware. This version can be upgraded at a later point if a return-style fuel system is installed.
Return Fuel System - If purchasing this option, you will receive a second 8AN fitting for the return port as well as associated return hoses and hardware. It is assumed that this is being used with an aftermarket fuel pump, so a hose is supplied to accommodate either 8mm or 10mm aftermarket fuel pumps with different outlet port sizes. If purchasing for a return fuel system, you will also receive a billet fuel pressure regulator delete to replace the stock in-tank regulator.
Features:
- Billet aluminum hat
- 2x 8AN ORB ports
- Threaded stainless steel support rods
- 6-Pin Apex 2.8 Bulkhead Connector
- Includes Slim 8AN ORB Plug (With returnless kit)
- Custom low-profile quick disconnect banjo fittings with allen banjo bolt
- Includes connectors and terminals, requires wiring into the factory harness
Fits:
- 2009-2020 Nissan 370Z
- 2008-2013 Infiniti G37 Coupe
- 2009-2013 Infiniti G37 Sedan
- 2014-2015 Infiniti Q60 Coupe
| Brand | Z1 Motorsports |
|---|
