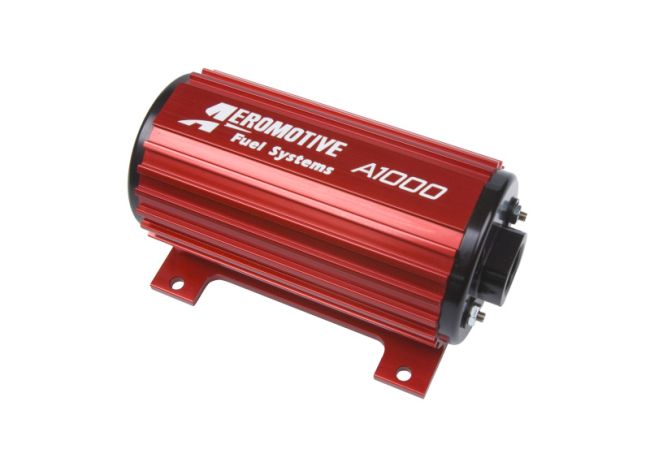

Aeromotive A1000 Fuel Pump - EFI or Carbureted Applications

P/N 11101: A1000 Fuel Pump

This is the pump that started it all. Durable, reliable, good looking and it supports high horsepower. Perfect for the daily driver that doesn't run like a daily driver.

Fuel Injected Engines: GAS

up to 1300 HP - naturally aspirated

up to 1000 HP - forced air induction

Carbureted Engines: GAS

up to 1500 HP - naturally aspirated

up to 1200 HP - forced air induction

Fuel Injected Engines: E85

up to 910 FWHP – naturally aspirated

up to 700 FWHP – forced air induction

Carbureted Engines: E85

up to 1050 FWHP – naturally aspirated

up to 840 FWHP – forced air induction

ORB-10 inlet and outlet ports.

For EFI applications use regulator P/N 13101 or P/N 13303.

For carbureted applications use regulator P/N 13204 or P/N 13304.

This product is not compatible for use with diesel fuel

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Fully submersible for custom, in-tank placement.

Perfect for 'blow-through' carbureted engines up to 1200 HP.

Billet Speed Pump Controller P/N 16306 recommended for EFI street applications.

Series A1000

Maximum Flow Rating 1000

Maximum Pressure 100

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Internal Or External External Or Internal

Pump Design Rotary Vane

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Carburation & Fuel Injection

Inlet Type Female Thread

Inlet Outside Diameter ORB-10

Outlet Type Female Thread

Outlet Outside Diameter ORB-10

Maximum Current Draw 12 @ 45 psi

Voltage 12

Negative Ground Yes

Wire Quantity 0

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 2

Terminal Type Threaded Stud

Strainer Included No

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included No

Seal And Lock Ring Included No

Gasket Or Seal Included No

Grade Type Performance
