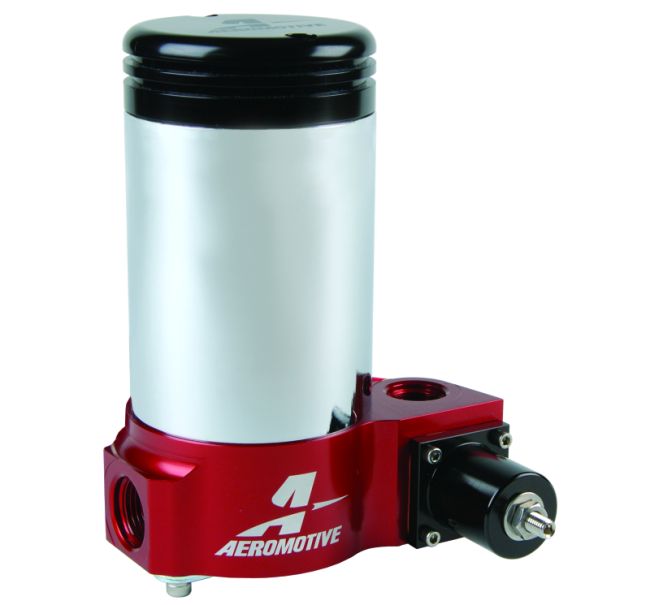

Aeromotive A2000 Drag Race Carbureted Fuel Pump

P/N 11202: A2000 Carbureted Fuel Pump

The A2000 flows enough fuel to support the world's quickest nitrous Pro-mods on gasoline, and is the industry's only fuel pump that uses a true diaphragm controlled, adjustable bypass valve, integral to the pump. This design dampens pressure spikes, delivering smoother, more controlled flow and pressure, ensuring more consistent E.T.s and win lights.

High torque, low RPM motor design delivers more than 350 GPH free flow, while developing less current draw than any other pump in its class.

Adjustable diaphragm bypass valve outperforms ineffective poppet designs, minimizing flow loss and pressure fluctuation to the regulator and carburetor.

ORB-10 inlet and outlet ports with ORB-8 return and 1/8' NPT gauge port.

This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.

Proprietary seal design eliminates leakage.

Alcohol compatible.

Multiple bolt patterns on the bottom of the pump body fit many chassis mounting options.

Series A2000

Maximum Flow Rating 350 GPH

Maximum Pressure 20

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Pump Design Rotary Vane

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Carbureted

Inlet Type Female Thread

Inlet Outside Diameter ORB-10

Outlet Type Female Thread

Outlet Outside Diameter ORB-10

Maximum Current Draw 14 @ 9 psi

Voltage 12

Negative Ground Yes

Wire Quantity 2

Wiring Harness Included No

Terminal Quantity 0

Terminal Type Lead Wire

Strainer Included No

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included No

Seal And Lock Ring Included No

Gasket Or Seal Included No

Grade Type Performance

Marine Approved No
