Aeromotive Chevrolet Camaro 3.6L & 6.2L (10-15) - Eliminator In-Tank Stealth Fuel System

Similar to the successful Corvette Stealth System, the new Camaro System is a complete drop-in single fuel pump assembly for 2010-2015 Camaros. The system provides a single A1000 or Eliminator Fuel Pump capable of supporting big HP. The best part, it drops right into your factory tank. It still incorporates the factory jet siphon system, includes an integral 100-micron pre-pump filter and an ORB-08 return line port. Now with a true return-style system into your Camaro, you can support the power your making without the worry of the siphon system and while maintaining your factory fuel tank. All while saving you money!

PRODUCT FEATURES:

Fits 2010-2015 (5th gen) Camaros

ORB-08 outlet and return port

Incorporates factory jet siphon system and sending unit

Includes an integrated 100-Micron Stainless Steel pre-pump filter

Utilizes the factory tank, o-ring, lock ring and mounting location

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

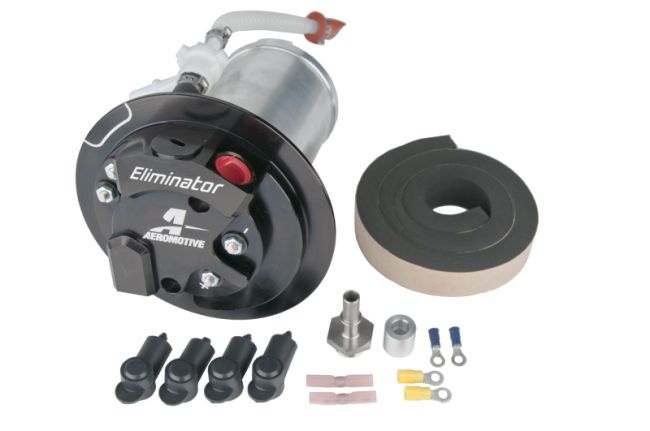

Includes everything necessary to install the pump into your tank.18674 - Eliminator Camaro Stealth Kit

Supports up to 1900 HP – naturally aspirated (EFI)

Supports up to 1400 HP – forced air induction (EFI)For Eliminator (P/N 11104) specifications, CLICK HEREFor more information about these systems, please visit the Camaro Stealth System page.

Series Eliminator

Maximum Flow Rating 340

Maximum Pressure 40

Fuel Type Gas/E85

Universal Or Specific Fit Specific

Internal Or External Internal

Pump Design Turbine Impeller

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Fuel Injection

Outlet Type Female Thread

Outlet Outside Diameter ORB-08

Voltage 12

Negative Ground Yes

Wire Quantity 0

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud

Strainer Included Yes

Fuel Sending Unit Included Yes

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included Yes

Seal And Lock Ring Included No

Gasket Or Seal Included Yes

Grade Type Performance
