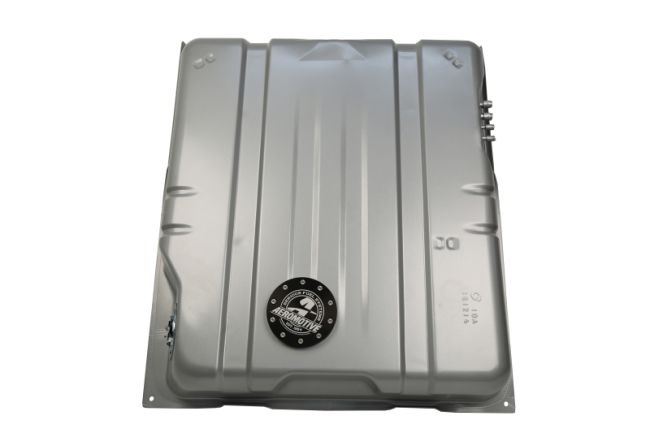

Aeromotive Dodge Charger & Plymouth Road Runner (71-72) Gen II Stealth Fuel Tank & 340-lph Fuel Pump

P/N 18162: Gen II Stealth Fuel Tank 71-72 Charger Road Runner

With Stealth 200 pump

OEM style tank, fully assembled.

20-Gallon Capacity.

Fuel level sending unit 73-10 ohm.

Complete with new tank, fuel pump, fuel sock.

Phantom baffle assembly built-in.

AN-06 O-ring Inlet/outlet ports in factory stock location.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

GEN II Stealth Tank Diagrams - Click Here

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 18162 - 200lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines (gasoline):

Up to 600 HP – naturally aspirated.

Up to 450 HP – forced air induction.

Carbureted Engines (gasoline):

Up to 750 HP – naturally aspirated.

Up to 600 HP – forced air induction.

P/N 18462 - 340lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines:

Gasoline: up to 850 HP – naturally aspirated.

Gasoline: up to 700 HP – forced air induction.

E85: up to 595 HP – naturally aspirated.

E85: up to 490 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1000 HP – naturally aspirated.

Gasoline: up to 850 HP – forced air induction.

E85: up to 700 HP – naturally aspirated.

E85: up to 595 HP – forced air induction.

P/N 18862 – 525lph Stealth Gen II Tank Application Specs:

Fuel Injected Engines:

Gasoline: up to 1200 HP – naturally aspirated.

Gasoline: up to 900 HP – forced air induction.

E85: up to 810 HP – naturally aspirated.

E85: up to 600 HP – forced air induction.

Carbureted Engines:

Gasoline: up to 1400 HP – naturally aspirated.

Gasoline: up to 1100 HP – forced air induction.

E85: up to 950 HP – naturally aspirated.

E85: up to 740 HP – forced air induction.

Series Gen II Stealth

Capacity 20 Gallons

Baffled Yes

Material Steel

Universal Or Specific Fit Specific

Color Silver

Filler Neck Attached Yes

Width OEM Inches

Fuel Type Gas

Grade Type Performance

Height OEM Inches

Length OEM Inches

Mounting Hardware Included No

Mounting Straps Included No

Sender Ohm Range 73-10

Sending Unit Included Yes

Fuel Pump Included Yes

Maximum Flow Rating 525LPH

Maximum Pressure 105 PSI

Pump Design Turbine Impeller

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Outlet Type Female

Outlet Outside Diameter ORB-06

Return Fitting Size ORB-06

Maximum Current Draw 17A @ 40PSI

Voltage 12-16V

Negative Ground Yes

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud
