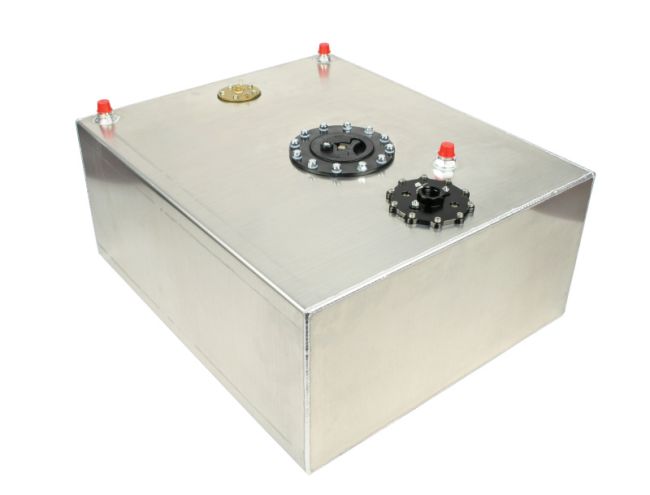

Aeromotive 20 Gallon A1000 Stealth Fuel Cell

Truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road.

Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete "in-tank" fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.

The Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy.

Features:

A1000 Fuel Pump (internal) - P/N 18010

100 Micron Stainless Steel Fuel Filter

6, 15, or 20 Gallon Capacity

AN-08 Return Line Provision

ORB-10 Outlet Port

(2) AN-08 Vents with Rollover Valves

Standard 12-Bolt Flush Mount Lid Assembly

Natural Aluminum Finish

Fuel Injected Engines:

up to 1300 HP - naturally aspirated

up to 1000 HP - forced air induction

Carbureted Engines:

up to 1500 HP - naturally aspirated

up to 1200 HP - forced air induction

Dimensions:

6 Gallon: 12" L x 12" W x 10" H

15 Gallon: 18" L x 20" W x 10" H

20 Gallon: 24" L x 20" W x 10" H

Series Stealth Fuel Cell

Capacity 6 Gallons

Baffled Yes

Material Aluminum

Universal Or Specific Fit Universal

Color Natural

Filler Neck Attached Yes

Width 12 Inches

Fuel Type Gas

Grade Type Performance

Height 10 Inches

Length 12 Inches

Mounting Hardware Included No

Mounting Straps Included No

Sending Unit Included No

Fuel Pump Included Yes

Maximum Flow Rating A1000

Pump Design Rotary Vane

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Outlet Type Female

Outlet Outside Diameter ORB-10

Return Fitting Size ORB-08

Voltage 12-16V

Negative Ground Yes

Wire Quantity 3

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 3

Terminal Type Threaded Stud
