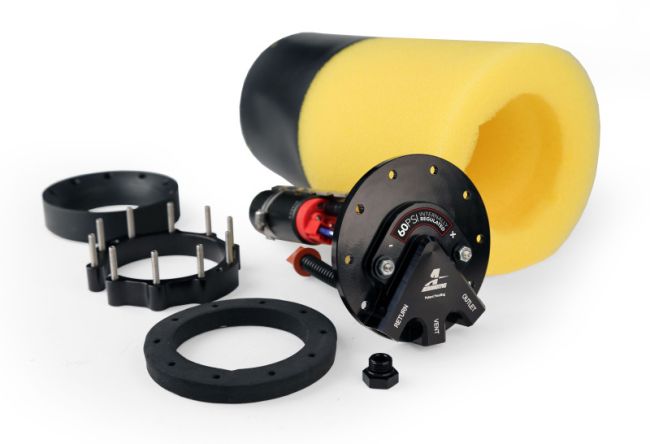

Aeromotive Fuel Pump - Universal - EFI Returnless Phantom - 60psi - 6-10in Depth

P/N 18329 EFI-Returnless Phantom In-Tank Pump

Internally regulated, returnless EFI fuel pump kit

Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done!  Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction on gasoline.  Reduce FWHP limit by 30% for E85.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

340 Stealth in-tank, baffled fuel pump

55-60 PSI internal bypass valve for returnless installations

ORB-06 outlet and vent ports

Gasoline and Ethanol compatible

Made for non-pulse modulated return-less systems.

Recommended parts to complete the system include:

1 - 12347 10-m AN-06 filter (for gasoline only)

1 - 16307 Fuel Pump Wiring Kit

2 - 15606 ORB-06 to AN-06 port fittings

Series Phantom

Maximum Flow Rating 340

Maximum Pressure 55-60

Fuel Type Gas/E85

Universal Or Specific Fit Universal

Internal Or External Internal

Pump Design Turbine Impeller

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Fuel Injection

Outlet Type Female Thread

Outlet Outside Diameter AN-06

Maximum Current Draw 13

Voltage 12

Negative Ground Yes

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 2

Terminal Type Threaded Stud

Strainer Included Yes

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included Yes

Seal And Lock Ring Included Yes

Gasket Or Seal Included Yes

Grade Type Performance
