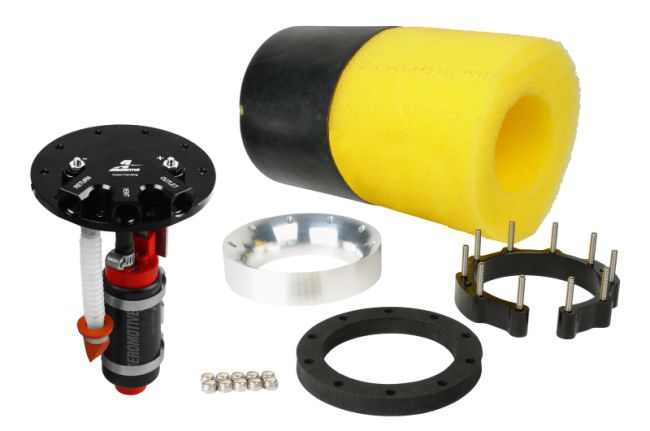

Aeromotive Phantom 340 Universal In-Tank Fuel System

NEW RETURNLESS STYLE KIT OPTION: Introducing the New Aeromotive Returnless Phantom Fuel System Kits. Engineered Specifically for use with the Vaporworx Fuel Pump Controllers. Utilizing the Vaporworx controller, we are able to completely eliminate the need for a fuel pressure regulator and return line. The Vaporworx fuel pump controller instantly varies the speed of the fuel pumps based on demand with use of a simple MAP sensor, creating an OEM+ style system, like all late model cars.  This reduces  the amount of heat introduced by the pump, creates  quieter operation and improves overall efficiency. Please note: Requires the use of VaporWorx Fuel Pump Controller to run Returnless Style (#66136). Kit does not include fuel pump controller, but does include an additional 85psi in-tank overpressure fail safe valve.

Considering a switch to EFI or swapping in that late model motor? What has recently become the hottest trend in hot rodding has been plagued by fuel delivery. The question is always, what do I do for a tank? Up until now, it's been one of three options. Weld in a sump to your tank, go with a fuel cell or pay for a custom tank. Well, not any more. Aeromotive's Phantom Fuel System gives you the option to put a high performance fuel pump inside virtually any fuel tank, including your factory tank. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Simply cut a hole in you tank. Measure the depth. Cut you pump hanger bracket to length and your baffle / basket foam. Insert the baffle. Install the retainer ring and gasket. Bolt your pump and hanger down. That's it. Now you have a fuel pump inside your factory tank capable of supporting big horsepower EFI or Carbureted and its whisper quiet.

No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system's internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system its completely universal. This system will fit virtually any tank from 6" deep to 11 inch deep, plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. Its serious performance you will never know is there!

Click here to learn more about this universal in tank fuel system.

Patent No. 8,783,287

Features and Specifications:

340 Stealth Fuel Pump

Supports up to

- 700 HP EFI - Forced Induction

- 850 HP EFI - Naturally Aspirated

- 850 HP Carbureted - Forced Induction

- 1000 HP Carbureted - Naturally Aspirated

Black anodized hanger assembly

(3) ORB-06 Ports – Supply, Return, Vent

Fuel resistant baffle / basket (Includes: Foam and Bladder)

Universal high flow pre-pump filter

Modular design can be cut to height to fit almost any fuel tank

EFI or Carbureted

Turbine pump mechanism increases durability.

Must be used with a return style system (or returnless with the Returnless Style Kit option). If you run the Returnless Style Kit, you must also purchase the VaporWorx #66136 Fuel Pump Controller separately.

In-tank use only

Series Phantom

Maximum Flow Rating 340 x 2

Maximum Pressure 40

Fuel Type Gas

Universal Or Specific Fit Universal

Internal Or External Internal

Pump Design Turbine Impeller

Integrated Controller No

Pulse Width Modulation Compatible Yes; Returnless ONLY with Returnless Style Kit & VaporWorx Part Number #66136 (purchased separately)

Fuel Delivery Type Carburation & Fuel Injection

Outlet Type Female Thread

Outlet Outside Diameter AN-06 X2

Maximum Current Draw 13 / each

Voltage 12

Negative Ground Yes

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 4

Terminal Type Threaded Stud

Strainer Included Yes

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included Yes

Seal And Lock Ring Included Yes

Gasket Or Seal Included Yes

Grade Type Performance
