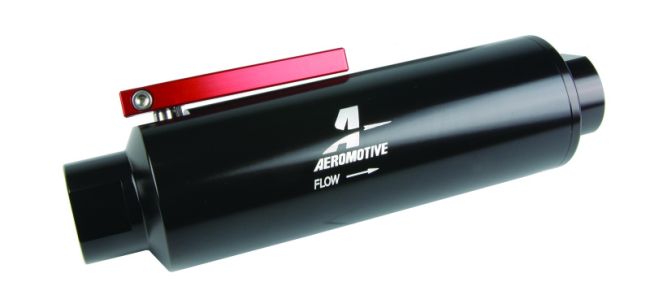

Aeromotive In-Line AN-12 Filter w/Shutoff Valve 100 Micron SS Element - Black Anodize Finish

P/N 12332: ORB-12 Shutoff Valve Fuel Filter

Ever take a fuel bath when changing your filter?

We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or sumped tank and the fuel pump inlet.

ORB-12 ports

100 micron stainless steel (coarse) cleanable element.

Dimensions: 8.82'' long x 2.5'' diameter

Proprietary stainless steel shutoff valve design.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle.

Perfect for pre-pump filtration.

Fuel Filter Style Inline

Fuel Type All Fuels

Inlet Quantity 1

Inlet Size AN-12

Inlet Attachment Female Thread

Inlet Outside Diameter AN-12

Outlet Quantity 1

Outlet Size AN-12

Outlet Attachment Female Thread

Outlet Outside Diameter AN-12

End 1 Gender Female

End 2 Gender Female

Fitting Type AN-12

Fittings Included No

Filter Element Included Yes

Filter Element Material Stainless steel mesh

Micron Rating 100

Smallest Particle Filtered 100 microns

Flow Rate 2000 Pounds Per Hour

Filter Housing Color Black

Filter Housing Finish Anodized

Filter Housing Diameter 2.0 Inches

Filter Housing Length 5.5 Inches

Filter Housing Material Billet Aluminum

Mounting Type External

Mounting Bracket Included No

Clamps Included No

Gasket Or Seal Included Yes

Maximum Fuel Pressure (psi) 70 PSI

Universal Or Specific Fit Universal
