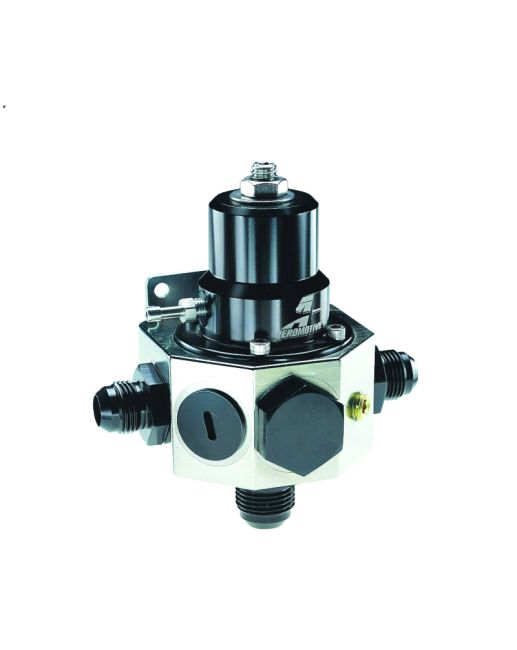

Aeromotive Pro-Series EFI Boost Reference Regulator

The tuner's choice for high horsepower EFI applications. The Pro-Series Regulator

can support up to 2000 HP. For engines requiring high volume, high pressure fuel

delivery the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power.

Adjustable base pressure from 30-75 PSI with the spring installed.

Adjustable base pressure from 75-125 PSI with the optional spring included.

Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring.

Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring.

Auxiliary ports available for nitrous applications, pressure gauges and transducers.

References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters,

one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)

Dedicated 1/8" NPT port.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Includes Aeromotive's radiused tapered flare fittings:

(3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters.

(1) ORB-10 return port with AN-10 flare adapter port plugs included.

Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.

Pressure Range 30-75 PSI

Adjustable Yes

Minimum Pressure 30 PSI

Maximum Pressure 75 PSI

Mounting Bracket Included Yes

Port Quantity 4

Inlet Port Diameter ORB-10

Inlet Gender Female

Gauge Included No

Color Black

Grade Type Performance
