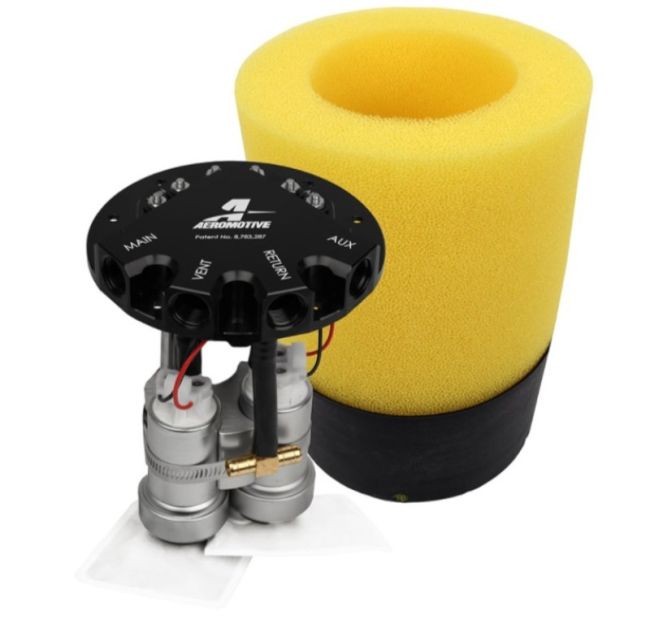

Aeromotive Phantom 450 Dual Stealth 340 Fuel Pumps 6-10in Depth

NEW RETURNLESS STYLE KIT OPTION: Introducing the New Aeromotive Returnless Phantom Fuel System Kits. Engineered Specifically for use with the Vaporworx Fuel Pump Controllers. Utilizing the Vaporworx controller, we are able to completely eliminate the need for a fuel pressure regulator and return line. The Vaporworx fuel pump controller instantly varies the speed of the fuel pumps based on demand with use of a simple MAP sensor, creating an OEM+ style system, like all late model cars.  This reduces  the amount of heat introduced by the pump, creates  quieter operation and improves overall efficiency. Please note: Requires the use of VaporWorx Fuel Pump Controller to run Returnless Style (#66138). Kit does not include fuel pump controller, but does include an additional 85psi in-tank overpressure fail safe valve.

Features and Specifications:

(2) 450 LPH Stealth Fuel Pumps

Gasoline and E85 Compatible

Supports Gas flywheel HP up to:

1600 HP EFI – Forced Induction

2,200 HP EFI – Naturally Aspirated

1900 HP Carbureted – Forced Induction

2600 HP Carbureted – Naturally Aspirated

Supports E85 flywheel HP up to:

1,100 HP EFI – Forced Induction

1,500 HP EFI – Naturally Aspirated

1,400 HP Carbureted – Forced Induction

1,800 HP Carbureted – Naturally Aspirated

Black anodized top hat

(4) ORB-08 Ports 2x Supply, (1) Return, (1) Vent

Larger Capacity fuel resistant baffle/basket (Includes: Foam and Bladder)

(2) Universal high flow pre-pump filters

Modular design can be cut to height to fit 7-11″ Deep Tanks

EFI or Carbureted

Turbine pump mechanisms increase durability

Must be used with a return style system (or returnless with the Returnless Style Kit option). If you run the Returnless Style Kit, you must also purchase the VaporWorx #66138 Fuel Pump Controller separately.

In-tank use only

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Series Phantom

Maximum Flow Rating 340 x 2

Maximum Pressure 40

Fuel Type Gas

Universal Or Specific Fit Universal

Internal Or External Internal

Pump Design Turbine Impeller

Integrated Controller No

Pulse Width Modulation Compatible Yes; Returnless ONLY with Returnless Style Kit & VaporWorx Part Number #66138 (purchased separately)

Fuel Delivery Type Carburation & Fuel Injection

Outlet Type Female Thread

Outlet Outside Diameter AN-06 X2

Maximum Current Draw 13 / each

Voltage 12

Negative Ground Yes

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 4

Terminal Type Threaded Stud

Strainer Included Yes

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included Yes

Seal And Lock Ring Included Yes

Gasket Or Seal Included Yes

Grade Type Performance
