Aeromotive Universal In-Tank Stealth System - A1000

Since releasing our Stealth Fuel Cells, the demand for the pump assembly alone has been exceptional. To meet this demand, we've developed our new Universal Stealth Pump Assemblies. Thesr revolutionary designs incorporate the same advantages all our Stealth Fuel Systems provide by placing the fuel pump and pre-filter inside the tank. However, this new design allows for multiple mounting options in almost any fuel tank or cell.

Designed for the custom tank builder or fabricator, the universal assembly uses O-Ring clamps to positively seal the provided ¾'' tube to both the filter pickup and the fuel pump inlet, allowing for perfect placement of the pickup and ensuring superior performance.

Now custom tanks and fuel cells can easily and affordably feature an in-tank fuel pump; increasing performance and driveability while extending the life span of the pump. Proper baffling and clearance will be required, but installation could not be simpler with this universal design. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

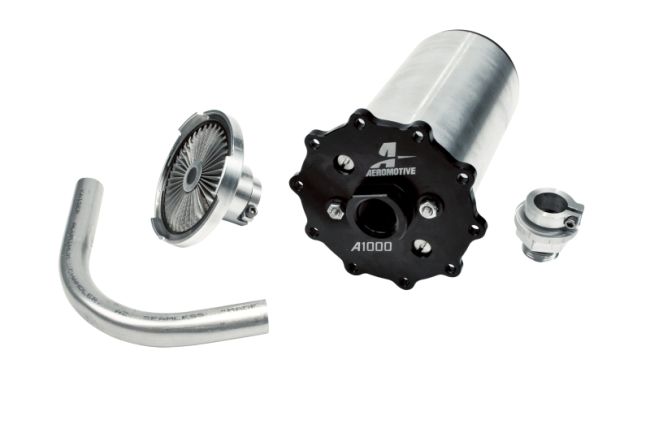

P/N 18668 features:

Aeromotive A1000 Fuel Pump (for specs on this pump, CLICK HERE)

100 Micron stainless steel Fuel Filter / Pickup

20" long 3/4" aluminum tube w/ 90 degree bend

Gaskets, mounting ring, bolts and washers for a positive seal mounting

Series A1000

Maximum Flow Rating 1000

Fuel Type Gas

Universal Or Specific Fit Universal

Internal Or External Internal

Pump Design Rotary Vane

Motor Style Brushed

Integrated Controller No

Pulse Width Modulation Compatible Yes

Fuel Delivery Type Fuel Injection

Inlet Outside Diameter 0.75

Outlet Type ORB-10

Outlet Outside Diameter ORB-10

Voltage 12

Negative Ground Yes

Wire Quantity 0

Wiring Harness Included No

Terminal Gender Male

Terminal Quantity 2

Terminal Type Threaded Stud

Strainer Included Yes

Fuel Sending Unit Included No

Regulator Included No

Mounting Bracket Included Yes

Mounting Hardware Included Yes

Seal And Lock Ring Included Yes

Gasket Or Seal Included Yes

Grade Type Performance
